Recent Advances in Deep Sea LEDs for the Offshore Industry

By K. R. Hardy, M. S. Olsson, B. P. Lakin, K. A. Steeves, J. R. Sanderson, J. E. Simmons, and P. A. Weber

Underwater Intervention, 2009

LED Multi SeaLite

Figure 1. DeepSea Power & Light®’s LED Multi-SeaLite® is rated for 6,000m and 2,000 lumen output in cool white. The design retains the slender form of DSPL’s popular Multi-SeaLite®. [DSPL photo]

Abstract- Manned vehicles, ROVs, and Saturation Divers are adopting Light Emitting Diodes (LEDs) as powerful and durable light sources. Developments continue to follow the rapid evolution of LEDs for general topside illumination. Electronic drivers have become increasingly smaller and efficient, with additional features including thermal roll-back, dimming, and wide range AC/DC input. DeepSea Power & Light® (DSPL) engineers have devised compact ocean optics, both reflectors and lenses. Successful pressure compensation of both LEDs and driver electronics foretell future designs in diver and vehicle lighting.

Recent at-sea experience by the Woods Hole Oceanographic Institution’s DSV ALVIN, a Canadian ROV, and an undersea film maker are discussed.

DeepSea Power & Light® (DSPL) has been involved in advanced underwater lighting since the company’s founding 25 years ago, including applications of LED lighting in harsh environments for over 10 years.

I. INTRODUCTION

Light Emitting Diodes (LEDs) are increasingly found in undersea lighting, because of their brightness, color quality, power efficiency and rugged durability. Previous papers and articles by the authors have discussed differences and advantages over gas discharge lamps [1], [2], [3], while additional articles in popular offshore trade magazines have quantified their application with respect to reflectors, alternative light sources, and optimal positioning for minimal backscatter [4], [5], [6].   In addition to the rapid improvement in LED technology, electronic drivers have become more compact and increasingly efficient, providing options for thermal roll-back, dimming, and wide range AC/DC with constant current output.  DSPL engineers have built both pressure-protected and pressure-equalized LEDs and driver electronics, with some oil filled LED arrays and drivers successfully operating at full power to 20,000psi.

II. A BRIEF REVIEW OF LED TECHNOLOGY

As the name “Light Emitting Diode” suggests, an LED is an electronic component consisting of several layers of semiconductor material.  Electrical power is driven through the diode, where bound electrons capture, then release, electrical energy as a very narrow spectrum of colored light.  Different colors of light are produced by a process called “doping”, where specific impurities are intentionally introduced into an extremely pure semiconductor element, usually silicon or germanium, changing both its physical and electrical properties.

Surprisingly, most white LEDs are really blue LEDs, coated with a single phosphor compound that absorbs the narrow spectrum blue light, and reradiating it as broad spectrum white light.  It’s impressive to think how remarkably effective this process is when looking at a high brightness white LED.

LEDs have important strengths compared to traditional filament or gas discharge lighting including: 1) rapid on-off switching; 2) increased efficiency; 3) maintaining constant color with dimming; 4) resistance to vibration and shock; 5) very long operational life; 6) specific choice of light color, with no light lost to filters; and 7) ability to run the lamp in air without risking damage to the light source and reflectors from excess heat.

An LED is one part in an electronic circuit.  The other parts are the power source, and the current controller called the “driver.”

LEDs are characterized by:

Brightness:  Caution: Manufacturers are now placing a “Vision Advisory Claim” safety warning in their specification sheets.  One manufacturer warns, “Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye.” [7]

Lumens versus watts:  LEDs produce five times the amount of white light than an incandescent lamp of equal power in watts.  It’s therefore more practical to talk about light-out (lumens) than power-in (watts).  A “lumen” is a measure of light as perceived by the human eye.

Heat:  LEDs still produce heat, which must be drawn away from the LED.  Fortunately, the cool ocean is a great heatsink.

Efficacy and Efficiency:  “Efficacy” is the ratio of the amount of light-out (lumens, “L”) divided by the electrical power-in (watts, “w”), written as L/w. [8]    “Efficiency” is the ratio of visible energy output (watts) to electrical energy input (watts), or watts/watts, a dimensionless number.

Most LED manufacturers report maximum efficacy under ideal circumstances, optimized by a short electrical pulse and an instantaneous light measurement.

Reliability:  LEDs are solid state devices highly insensitive to shock, improving their operational robustness under offshore conditions.

Lifetime:  LED life, or “lumen maintenance,” is the time it takes for an LED to reach 70% of its initial light output [9].

Manufacturers publish estimated life ratings for individual LEDs of up to 50,000 hours or even more, but these are best case scenarios under controlled laboratory conditions. A more realistic simulation is a dense LED array running in air on a hot deck at mid-day.  DSPL provides a thermal rollback circuit to reduce current and dim the LEDs, lowering heat without shutting off the light completely.  A thermal cut-out switch provides a secondary safety feature.

Color Temperature:  The “whiteness” of light is tied to black body “color temperature,” expressed in degrees Kelvin (oK). Imagine the red-orange color of molten glass, and the red-orange color of hot steel in a drop forge. The color is dependent on temperature alone, not the kind of material at that temperature. Natural sunlight on a clear day is about 5880oK.  A higher temperature white (7000oK), has a bluer tint, while a cooler temperature white (4000oK) has a redder tint.

Reflectors:  LEDs project their light predominantly outward perpendicular to the face of the die, in a “Cosine” distribution. This means there is less light projected as the angle falls off to parallel with the face of the die. Compact reflectors and microlenses are all that’s needed to capture and redirect the projected light as either a spot light for maximum distance, or a floodlight for wide area illumination.

III. ADVANCEMENTS IN LED TECHNOLOGIES

The principle advances in LED technology in the past year have occurred in the area of A) increase in light output for power input (lumens/watt), B) multi-chip packages, C) minimal package size, and D) drivers.

A. Improved Efficacy

Commercially available efficacies have risen in the past year from 80-lm/watt @ 350mA for the best cool white LEDs, to 110-lm/watt @ 350mA.  In November 2008, one manufacturer announced it achieved a sustained 173-lm/watt in the lab, promising continued advancement.  The extra good news is that as more light goes out the front, less heat goes out the back.

High Brightness LEDs are typically rated for light output at 350mA.  They can be run at higher currents, but not to exceed manufacturer stated “Maximum Operating Current.”  With the higher power, light output does increase, but at a reduced lumens/watt.  The difference is more heat out the back.

Cree MCE 4-chip LED

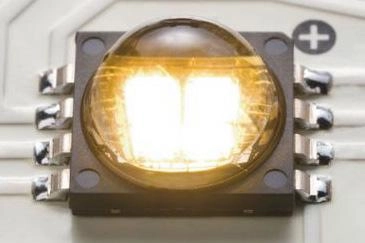

Figure 2. The Cree MCE 4-chip LED allows for more light from a single package while each die operates at a cooler temperature. [10]

B. Multi-chip packages

To maximize light output with least heat, a few LED manufacturers now package multiple LED dies under a single silicone dome.  This allows a higher density of LEDs, each operating at their nominal power rating.

Commercially available products include Osram OStar (6 dies), Cree MCE (4 dies), Seoul Semiconductor P7 (4 dies), and Seoul Acriche. The Cree MCE yields a brilliant 430-lm at 4 watts (Fig. 2). The Seoul P7 produces 360-lm at 4 watts. The Acriche uses two parallel, but reverse, strings of 36 tiny LEDs (72 total per part), that use their unidirectional current flow property to rectify the two AC half waves directly.  The only other required parts are a current limiting resistor, and a thermal cut-out switch.  While this circuit is the ultimate in simplicity, it does not lend itself to a wide range of dimming options, is very sensitive to overvoltage transients, and can produce flicker problems with some video systems. The best Acriche produces an underwhelming 46-lm per watt, meaning more wasted heat.

C. Minimal package size

At least two manufacturers are making minimal packages holding High Brightness LEDs.  They start with the die mounted on a slightly larger ceramic substrate, then add only the smallest amount of anything else.  The Cree XP (Fig. 3) and Philips Luxeon Rebel (Fig. 4) are examples of this approach.

Cree XP-E LED

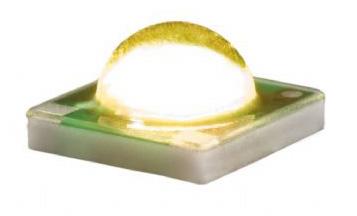

Figure 3. A Cree XP-E LED combines the smallest footprint and the highest light output available today in a single die LED. [11]

Philips Luxeon Rebel

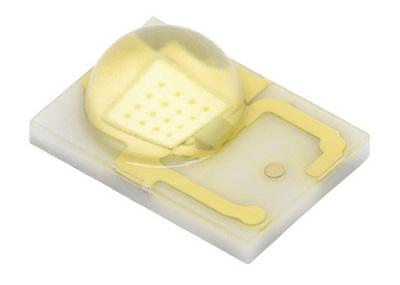

Figure 4. The Philips Luxeon Rebel provides a unique package designed for space-constrained solid-state lighting applications. [12]

D. LED Drive Electronics and Dimming Circuitry

DSPL has developed a series of highly efficient, compact drive circuits to accommodate the wide range of power sources common to offshore operations.  Low voltage DC (9-32VDC), accommodates a wide range of battery voltages. High-voltage AC/DC universal inputs (85-132VAC 50/60Hz, or 190-265VAC 50/60Hz), isolated flyback and non-isolated buck/boost converters, plus power factor corrected designs are all available.  Miniaturization for compactness has been a primary design consideration. DSPL switch mode regulators deliver efficiencies exceeding 93%.

In addition to DSPL’s temperature monitoring circuitry that prevents overheating, LEDs eliminate the start-up/cool-down requirements of HID and Xenon ballasts. The DSPL LED Multi-SeaLite is as easy to use as a flashlight.

E. LED Fluid compensation issues

The fluid compensation problem has been a random, mysterious, and complex problem.  Most DSPL pressure compensated LED lights have shown no trouble.  But a few had a small fraction of their LEDs brown.  DSPL engineers initially suspected the phosphor layer was being contaminated, but a collaborating major LED manufacturer later discovered browning of some of its blue LEDs, which contain no phosphor.  Investigation by DSPL and the LED manufacturer has produced a growing sense that it is not the compensating fluid itself that is the problem, but its ability to act as a carrier to move contaminants in the system into the area just above the die.  There, the combination of heat and light causes the silicone to brown.  No-clean soldering flux residue is one potential contaminant source.  Potting the LEDs in certain silicone rubbers has shown promise in preventing the chemical migration.  Eliminating the problem entirely remains the goal of intense research.

IV. FIELD EXPERIENCES

Woods Hole Oceanographic Institution's DSV Alvin

Figure 5. Woods Hole Oceanographic Institution’s DSV ALVIN carries Ann Curry, Co-Anchor of MSNBC’s Today Show, on an underwater expedition with eight DSPL LED SeaLites, three on the port side, three on the starboard side, one forward, and one in the belly. See the full video at [13].

A. DSV ALVIN

DSV ALVIN, Woods Hole Oceanographic Institution’s famed manned submersible, has operated with up to eight DSPL 2000-lumen LED SeaLites®. The efficiency of the LED lights allow WHOI pilots to operate three LED lights on the same circuit a single incandescent light ran on before. In March 2008 on the 9-North hydrothermal vents, pilots reported navigating 6km on the seafloor with all lights running continuously, an operational first.

B. ROV ROPOS

ROPOS ROV

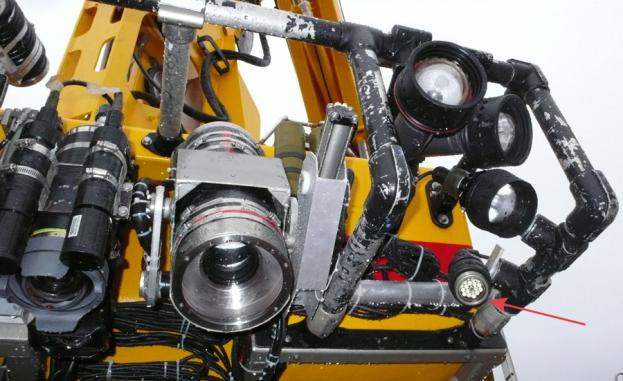

Figure 6. Canadian Scientific Submersible Facility – ROPOS ROV before an evaluation dive with DSPL’s LED-MultiSeaLite® (red arrow), and other lights. [Photo by Reuban Mills, ROPOS]

DSPL provided Reuben Mills, Mechanical systems design /Pilot with the Canadian Scientific Submersible Facility – ROPOS (http://www.ropos.com/), with a pair of LED-SeaLites®for evaluation and comparison to DSPL 150 w and 400w HID lights.

Reuban reported the “Lights are great, and should be perfect for instrument deployments with that efficiency. The HD video with the 400w’s, the 150w’s & the LED’s is pretty stunning.”

We were very impressed with the beam control on the spot unit, like a large laser pointer!  I have these lights spec’d for an 8 camera 3D imaging array we’re building for the University of Alberta this winter.”

Diver holding a living 7-ft Humboldt Squid

Figure 8. Intrepid undersea film maker and naturalist, Scott Cassell, holds a live 7-ft Humboldt Squid. Scott has experimented with DSPL LED Multi-SeaLites and cameras in his filming. [Photo by Ivo Kocherscheidt, 2007. Used with permission.]

C. Diver

Underwater Filmmaker and Submerged Frontiersman, Scott Cassell, (http://www.underseavoyager.org/), recently paired a DSPL low light camera with two LVDC LED-SeaLites®   for dives to film his favorite subject, the voracious Humboldt Squid.

Scott called the white DSPL LED-SeaLites®, “incredibly awesome.” “That light is the finest light I have ever used,” said Scott.  “It is durable, broad beamed and clear white color. It worked perfectly for use with the night vision system (I would spot the squid with the light, then turn it off for the NV to capture images).  It is perfect for HD video.”

V. FUTURE DEVELOPMENTS

DSPL continues refinement of current product, and development of the next generation of deep ocean, light weight LED lights, including large area panel lights. Novel methods of pressure compensation and heat extraction will create some of the most unique lights ever made by man for use in the sea.

Certain applications require dimming, and DSPL is adapting to the numerous dimming interfaces used in the industry, including isolated and non-isolated control voltage (0-10VDC), current loop (4-20mA), PWM, and serial communications.

VI. CONCLUSION

LED lights continue to make inroads into the world of underwater illumination providing multiple colors, high brightness, safety, flexibility, reliability, and efficiency.

ACKNOWLEDGMENTS

The authors gratefully acknowledge and thank the WHOI ALVIN Group, particularly Rick Chandler, Pat Hickey, Mark Spear, Bruce Strickrott, and Rod Catanach for their boundless encouragement to push the capabilities of deep ocean LED lights.  These men reflect the best seafaring traditions of oceanography.

We appreciate and thank Reuben Mills, ROPOS for his field test of beta versions of the LED-SeaLites®. Such feedback helps validate and steer design.

The authors recognize Scott Cassell for his early efforts to characterize and understand the impact of the predation behavior of the voracious and spreading Humboldt Squid population, and share that knowledge with a general audience who may one day be affected.

FOOTNOTES AND REFERENCES

Update: Please note that some links may be out of date

[1] “High Brightness Light Emitting Diodes for Ocean Applications,” K. R. Hardy, M. S. Olsson, J. R. Sanderson, B. P. Lakin, J. E. Simmons, P. A. Weber, Oceans2007 Proceedings, Vancouver, Canada

[2] “Underwater Application of High-Power Light Emitting Diodes,” M. S. Olsson, K. R. Hardy,  J. R. Sanderson, Sea Technology Magazine, August 2007, Vol. 48, No. 8, pp 31-34

[3] “Submerged Application of High Brightness Light Emitting Diodes,” Intervention 2008 K. R. Hardy, M. S. Olsson, J. R. Sanderson, B. P. Lakin, J. E. Simmons, P. A. Weber, Underwater Intervention 2008 Proceedings, New Orleans, LA

[4] “Optimal Lighting Geometry for Underwater Lights and Cameras, Series Part 1,” K. R. Hardy,  M. S. Olsson, P. A. Weber, Ocean News & Technology Magazine, September 2008, Vol. 14, No. 6, pp 24-25

[5] “Underwater Light Reflector Design, Series Part 2,” K. R. Hardy,  M. S. Olsson, P. A. Weber, Ocean News & Technology Magazine, October/November 2008, Vol. 14, No. 7, pp 24-25

[6] “Displacing Darkness: Lights in the Deep Sea,” K. R. Hardy,  M. S. Olsson, P. A. Weber, Ocean News & Technology Magazine, December 2008, Vol. 14, No. 8, pp 32-35

[7] Cree X-Lamp XR-E Series LED, Data Sheet, CLD-DS05.010, 2008, pp 10

[8] <http://en.wikipedia.org/wiki/Efficacy>

[9] ASSIST, the Alliance for Solid State-State Illuminations and Technologies

www.lrc.rpi.edu/programs/solidstate/assist/index.asp

[10] http://www.cree.com/press/enlarge.asp?i=1222956766040

[11] http://www.cree.com/press/enlarge.asp?i=1218054776786

[12] http://www.philipslumileds.com/products/show.cfm?imgId=38

[13] http://today.msnbc.msn.com/id/26184891/vp/27641853#27641853, look for program titled “Ann goes to the bottom of the sea.”
