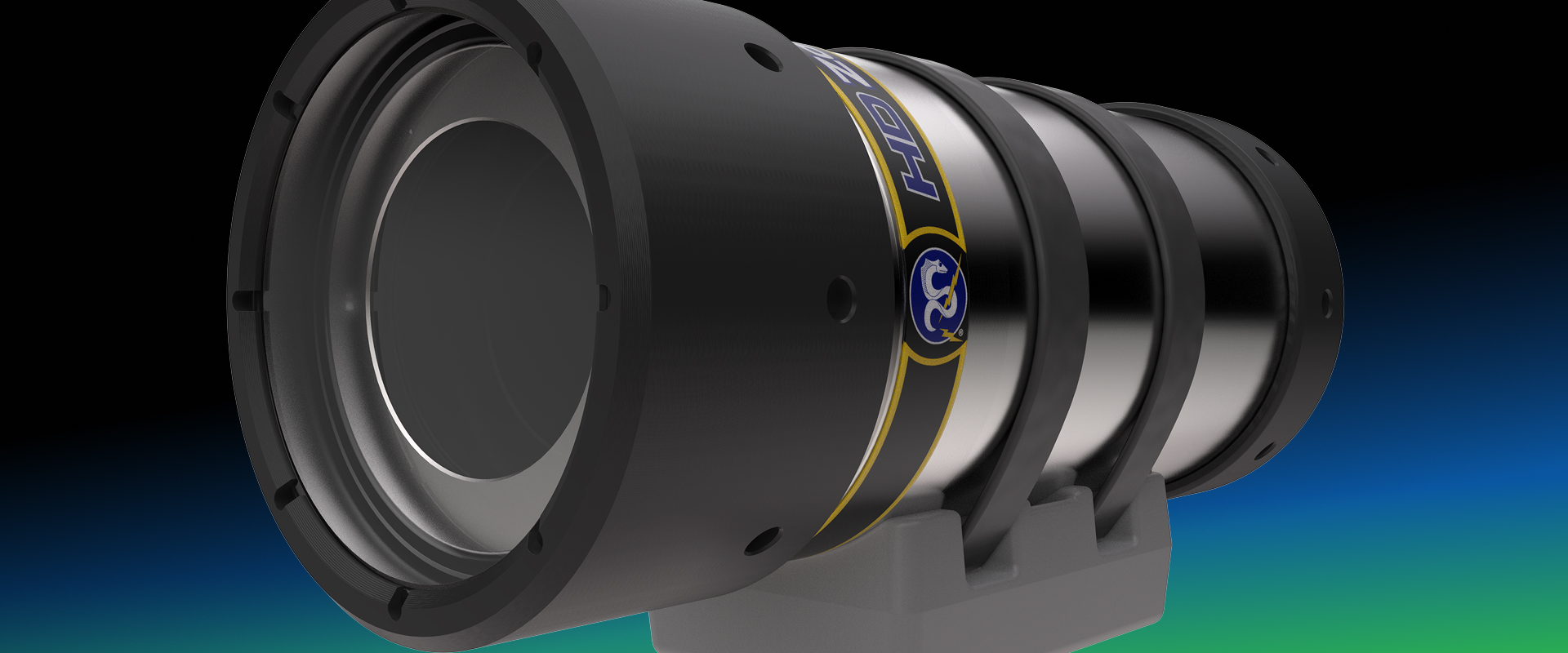

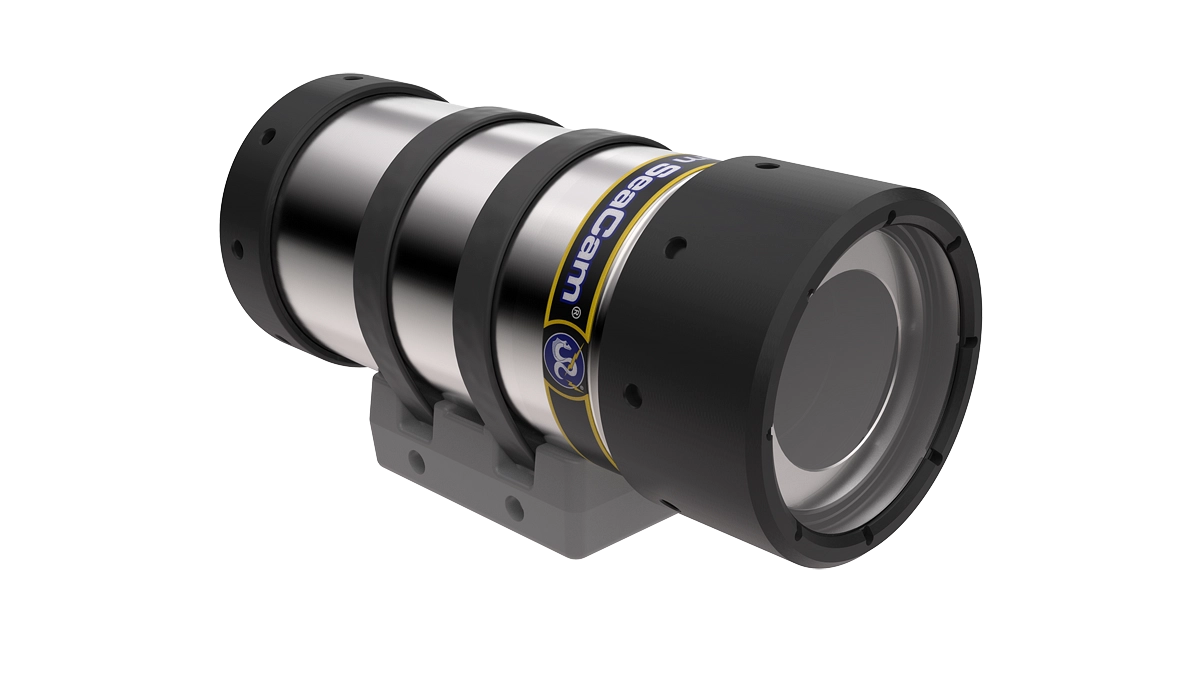

HD Zoom SeaCam

30x optical zoom capability.

ROV/AUV Inspection Tasks

Subsea vehicles

Scientific Research and Exploration

The HD Zoom SeaCam^_® has a 30x optical zoom and superior low light performance with a minimum illumination of 0.024 Lux while providing high quality HD video at up to 60 frames per second. This camera is available with both Coax and our FleXlink^_® video interface and comes in either a 6000m rated Titanium housing or a light weight 2000m rated Aluminum variant.

Request a Quote

HD 30x Optical Zoom

1080p/60

FleXlink^_®
transmission

Coax
transmission

optically polished glass

up to 6 km depth rating

Specifications
Drawings
Documents & Downloads

Downloads

HD Zoom SeaCam^_®

HD Zoom SeaCam^_® STEP

HD Zoom SeaCam^_® x_b

HD Zoom SeaCam^_® SLDPRT

HD Zoom SeaCam^_® IGS

Documents

Manuals & Specs

HD Zoom SeaCam^_® Manual

HD Zoom SeaCam^_® SpecSheet

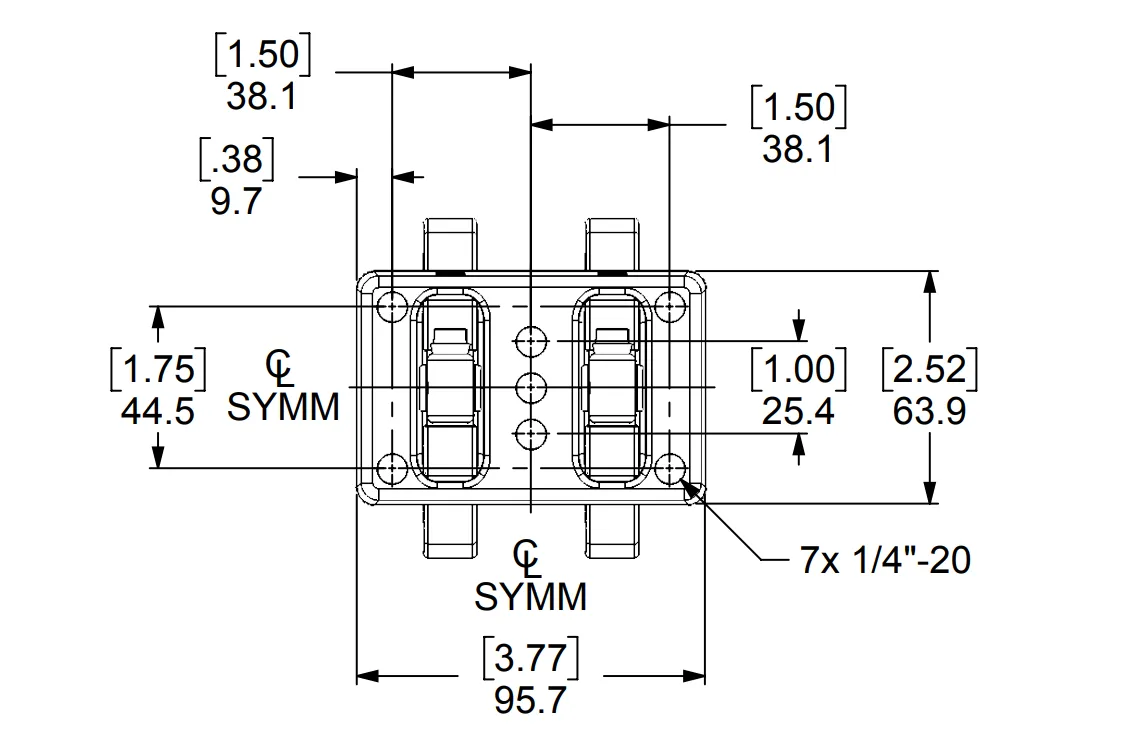

HD Zoom SeaCam^_®

Bracket

HD Zoom SeaCam^_® – HDZSC-3045
Optical
Lens	4.3 mm ~ 129 mm, F/1.6 to F/4.7
Focus	Wide: 10 mm ~ infinity Telephoto: 1200 mm ~ infinity
FOV in Water	Wide: 47° H x 27° V x 53° D Telephoto: 1.7° H x 1° V x 2° D
Video
Image Sensor	1/2.8 in. 2.1MP CMOS
Sensor Resolution	1920 H x 1080 V
Measured Resolution	850 TVL
Faceplate Illumination	0.024 Lux (50IRE)
Signal to Noise	> 50dB
Video Output	3G-SDI 3Gb/s 1080p/60, 1080p/59.94, 1080p/50HD-SDI 1.5Gb/s 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Serial Protocol	VISCA
Environmental
Depth Rating	Titanium: 6,000 m Aluminum: 2,000 m
Operational Temperature	-5 °C to 60 °C (23 °F to 104 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Electrical
Voltage	10~36 VDC
Power	9W max
Mechanical
Housing	6061 Aluminum6AL-4V Titanium
Port	Optically polished glass
Outer Diameter	95.5 mm (3.76 in.)
Overall Length without connector	226.6 mm (8.92 in.)
Weight in Air with MCBH8-NET	Al: 2.18 kg (4.80 lbs) Ti: 2.73 kg (6.02 lbs)
Weight in Air with MCBH8-NET	Al: 0.62 kg (1.37 lbs) Ti: 1.16 kg (2.56 lbs)
Connectors
FleXlink^_®	SubConn DBH8M-SS
Coax	SubConn HF75CXBH6M-SS
Please contact sales for more connector options
