Nano SeaLite®
Ultra compact and lightweight.
Our smallest light ideal for confined, small spaces.
For lightweight applications
Small space needs
The Nano SeaLite® is our smallest light and emits up to 700 lumens. This LED light comes in a titanium housing, and has an optional 11,000 m depth rating. Divers and inspection class ROVs use this subsea light for its size and weight. The Nano SeaLite includes a mounting bracket, and can be paired with the Nano SeaCam on a dual mounting bracket.
Up to 11 km depth rating
Color
options
up to 700 lumens
70
° Flood beam angle
Ultra compact & lightweight
10-36 VDC Input power
- Specifications

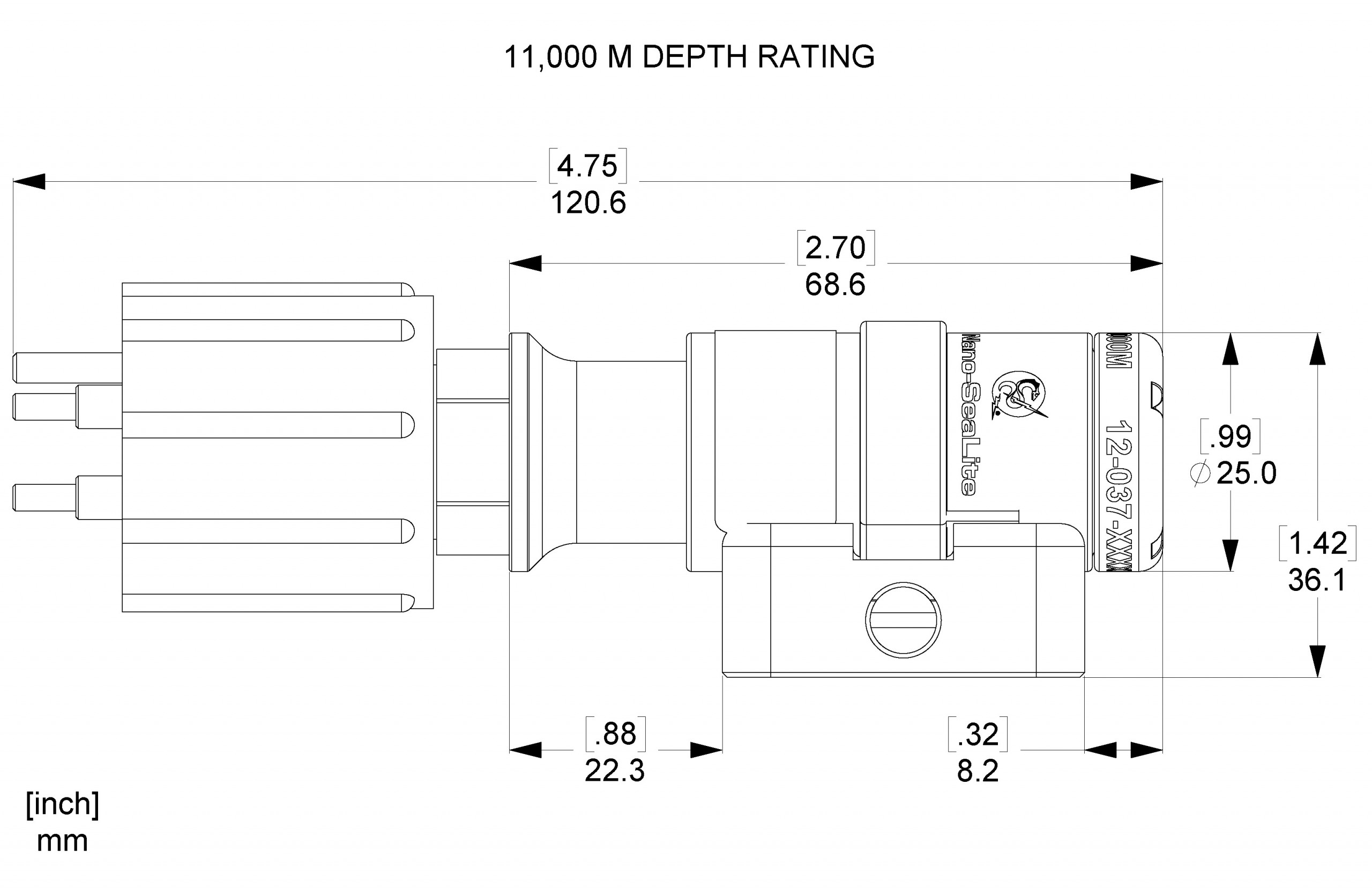

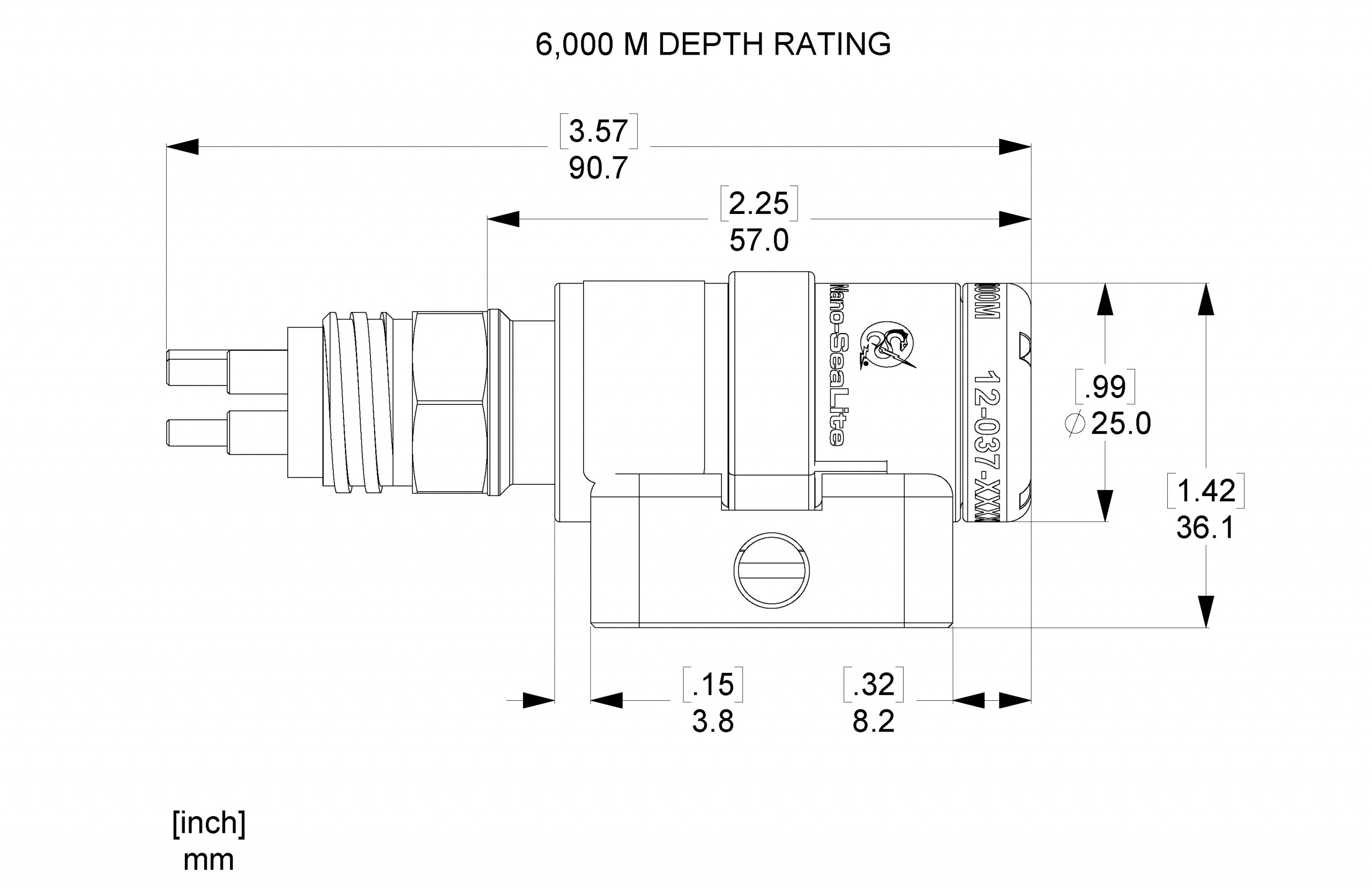

- Drawings
- Documents & Downloads
| Nano SeaLite® | ||
|---|---|---|
| Optical | ||
| Typical Lumens Output | 700 | |
| Standard Colors | Daylight White 5000 K – 6500 K Other options available | |
| Flood Beam Angle | 70° | |
| Environmental | ||
| Depth Rating | 6,000 m standard 11,000 m optional Contact sales for 11,000 m depth rated connector options. | |
| Operational Temperature | -10° C to 50° C (14° F to 122° F) | |
| Electrical | ||
| Voltage | 10~36 VDC | |
| Power | 14 W | |
| Mechanical | ||
| Housing | Titanium 6AI-4V | |
| Port | Sapphire | |
| Outer Diameter | 25 mm (0.99 in) | |
| Overall Length without connector | 54.5 mm (2.15 in) [6,000 m depth rating] 68.6 mm (2.70 in) [11,000 m depth rating] | |
| Weight in Air | 140 g (4.9 oz) [6,000 m depth rating] 160 g (5.6 oz) [11,000 m depth rating] | |
| Weight in Water | 100 g (3.5 oz) [6,000 m depth rating] 47 g (1.7 oz) [11,000 m depth rating] | |
| Connector | ||
| Default | SubConn MCBHM4/SS | |
| Please contact sales for more options | ||
