MxD® SeaCam®
The ultimate 4k imaging system for subsea exploration.
At the heart of the MxD® is the subsea imaging unit, based on a Sony HDC-50 compact broadcast camera with the performance and advanced features of full-sized studio systems. The 4K-UHD resolution 2/3” class 3-CMOS global shutter optical block provides unparalleled sensitivity, sharpness, support for HDR (hyper gamma) and the full BT.2020 color space along with the full range of controls expected from a no-compromise, future-proof studio grade platform.
The imaging potential is matched with a best-in-class Canon CJ15ex4.3 wide-angle zoom lens with 15x magnification, providing a 96° horizontal field of view at full wide and just 8.4° at full telephoto. This lens is coupled with a custom 4-element dome port corrector cell for near zero distortion viewing and diffraction limited performance from 0.3 meters to infinity. The purpose-built Titanium housing and borosilicate dome of the MxD SeaCam provide reliable operation to 4000m with options for up to 7000m depths using a patent pending design, proven across thousands of actual pressure cycles.
Video uplinks and camera controls are integrated into an embedded telemetry system connected through a single fiber optic interface to a top-side hub that provides industry standard 12G-SDI video and familiar remote camera and lens controls.
MxD® SeaCam®
Broadcasting from the Deep
In this discussion, DeepSea’s Director of Engineering Aaron Steiner talks through the MxD SeaCam UHD Imaging System as a case study in adapting broadcast technology for extreme deep-sea environments.
The conversation covers the engineering and validation process behind the system, from optical performance and mechanical design to system integration, showing how standard broadcast tools and workflows can operate reliably under intense pressure.
4k Ultra HD
custom corrector optics
15x optical zoom
3-Cmos 2/3” sensors
96° horizontal field of view
optional 2x tele-converter
- Specifications

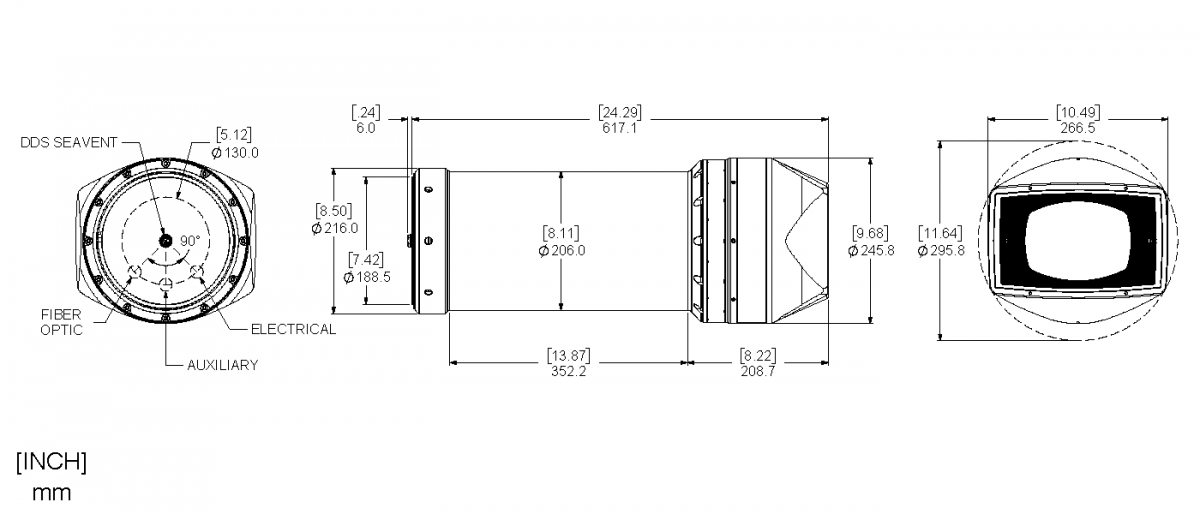

- Drawings
- Documents & Downloads
| MxD® SeaCam® | ||
|---|---|---|
| Video | ||
| Sensor | 3-chip 2/3-inch type 4K CMOS | |
| Shutter | Global Shutter | |
| Resolution |
QFHD: 3840 × 2160 HD: 1920 × 1080 | |
| Color Space | ITU-R BT.2020 wide color gamut | |
| Sensitivity (2000 lx, 3200 K) | F10 (59.94 fps), F11 (50 fps) | |
| Noise Level | −62 dB | |
| Format |
QFHD: 4K/59.94p, 4K/50p FHD: 1080/59.94p, 1080/50p HD: 720/59.94p, 72/50p | |
| Zoom |
15x Optical Zoom 2x Extender | |
| Focal Length | 4.3 to 65 mm | |
| Maximum Aperture |
f/1.8 at 4.3–40 mm f/2.9 at 65 mm | |
| Field of View |
Wide: 96.3° × 64.2° Tele: 8.4° × 4.8° | |
| Minimum Object Distance | 0.3 m | |
| Control | ||
| Camera Control | RCP-1000/1001/1500/1501/3100/3500 or equivalent remote control panel | |
| Zoom | Variable rate servo zoom control | |
| Focus | Variable position servo focus control | |
| Inputs/Outputs | ||
| Fiber Optic | Single mode, 3-channel CWDM per ITU-T G.694.2, 20 nm spacing | |
| 12G-SDI Video | Primary video uplink wavelength: 1311 nm, SMPTE ST 2082, up to 4K/60p | |
| Telemetry & Control | Telemetry uplink wavelength: 1471 nm Telemetry downlink wavelength: 1491 nm | |
| LAN | Camera setup and control | |
| HD-SDI Monitor | SMPTE 292M, live view utility monitor output | |
| Camera & Lens Control | RS-485, proprietary Sony protocol | |
| System Monitor | Temperature, humidity, pressure, leak detection | |
| Electrical | ||
| Voltage | 24 VDC | |
| Power | 35 W Max | |
| Mechanical | ||
| Material | Housing: Titanium Port: Borosilicate glass | |
| Dimensions | 593.5 mm [23.4 in] long (without connector), 205 mm [8.1 in] housing diameter | |
| Weight in Air | 45 kg [100 lb] | |
| Weight in Water | 24 kg [53 lbs] | |
| Environmental | ||
| Maximum Operating Depth | 4000 m / 5800 PSI (7000 m option) | |
| Proof Test Pressure | 7250 PSI | |
| Operating Temperature | −8 °C to +27 °C | |
| Storage Temperature | −20 °C to +60 °C | |
