Multi SeaCam®
Reliability with a range of configurations.
Dependable imaging with minimal infrastructure.
ROV/AUV Inspection Tasks
Scientific research and exploration

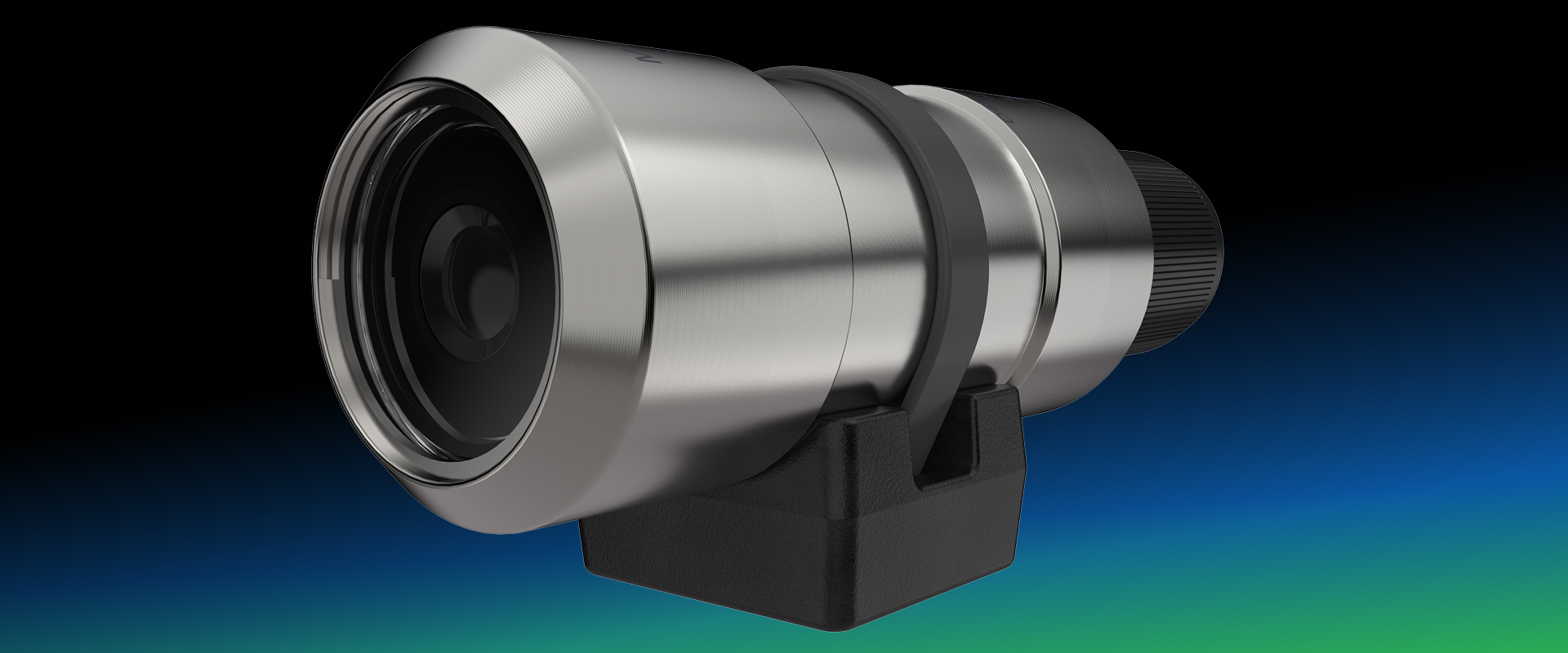

The reliable Multi SeaCam® is an analog camera for subsea operations with a range of configuration options. This camera features a sapphire port and standard titanium housing with a 6,000 m depth rating. The Multi SeaCam includes a mounting bracket with titanium inserts. The LED Multi SeaCam® offers similar capabilities with integrated LED lights.
Housing material options
Standard
COnnector
NTSC & PAL analog outputs
Scratch-resistant sapphire port
up to 6 km depth rating
Color
options
- Specifications

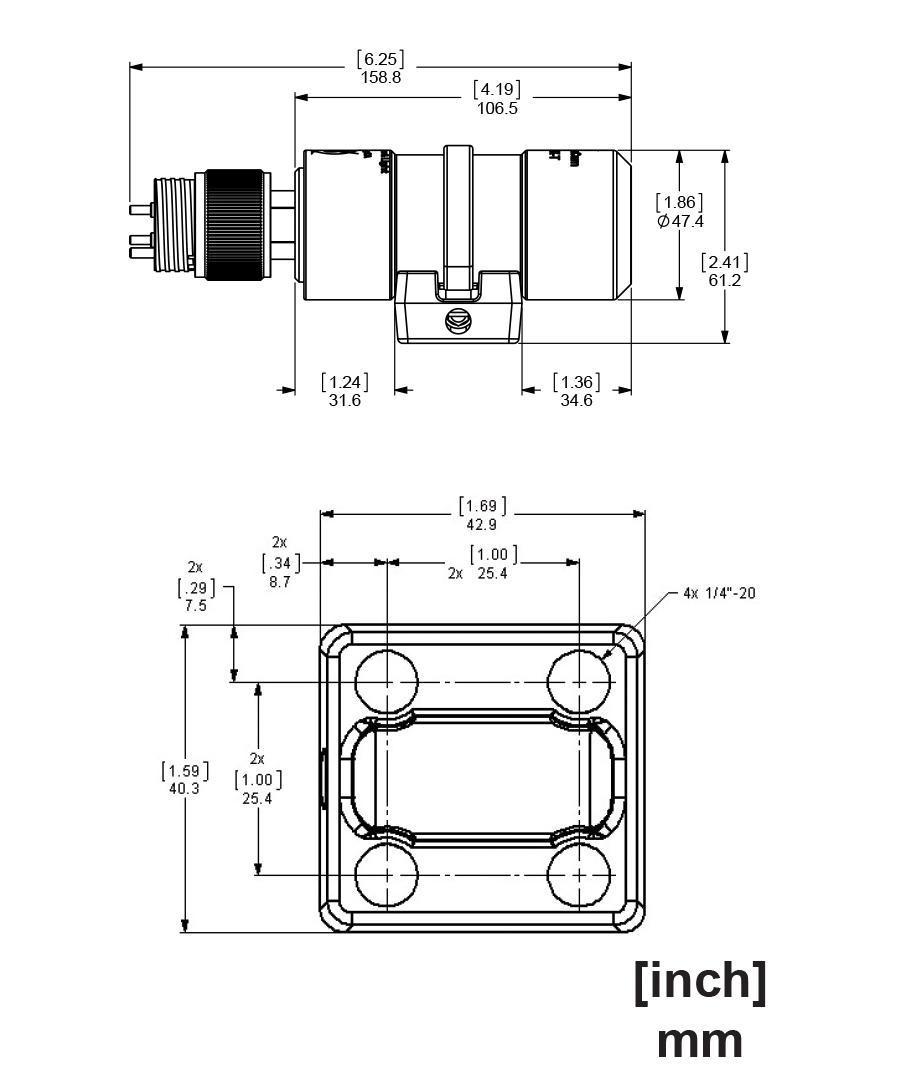

- Drawings
- Documents & Downloads
Downloads
Multi SeaCam®
Documents
Manuals & Specs
Catalog
Multi SeaCam®
| Optical | MSC-1070 (B&W) | MSC-2070 (Color) |
|---|---|---|
| Lens | 3.0 mm, f/2.0 | |
| Focus | Fixed focus | |
| Depth of Field | 10 cm [4 in.] to infinity | |
| FOV in Air | 86° H x 63° V x 95° D | |
| FOV in Water | 64° H x 45.5° V x 74° D | |
| Video | MSC-1070 (B&W) | MSC-2070 (Color) |
| Image Sensor | 1/3.2 inch CMOS image sensor | |
| Number of Pixels | 1280 H x 486 V (NTSC); 1211 H x 576 V (PAL) | |
| Video | MSC-1070 (B&W) | MSC-2070 (Color) |
| Resolution | 600 TV lines horizontal | |
| Scene Illumination | 0.59 Lux at f2.0 | 0.59 Lux at f2.0 |
| Signal to Noise | 50 dB | |
| Video Output | 1.0 volt peak-to-peak into 75 ohm | |
| Video Format | NTSC or PAL (B&W) | NTSC or PAL |
| Environmental | MSC-1070 (B&W) | MSC-2070 (Color) |
| Depth Rating | 6,000 m | |
| Operational Temperature | -20° C to 40° C (-4° F to 104° F) | |
| Electrical | MSC-1070 (B&W) | MSC-2070 (Color) |
| Power | 10~36 VDC | |
| Current | 0.93 Watt max | |
| Mechanical | MSC-1070 (B&W) | MSC-2070 (Color) |
| Housing | Titanium | |
| Port | Sapphire | |
| Outer Diameter | 47.4 mm (1.86 in) | |
| Overall Length without connector | 106.5 mm (4.19 in) | |
| Weight in Air | 459 g [16oz.] | |
| Weight in Water | 112 g [4 oz.] | |
| Accessory | MSC-1070 (B&W) | MSC-2070 (Color) |
| UV Cutout Filter | UV cutout filter for use with UV LED SeaLite (may reduce Field of View) | |
