LED Multi SeaCam®
Rugged design with titanium housing.
Dependable imaging with minimal infrastructure.
ROV/AUV Inspection Tasks
Scientific research and exploration
The LED Multi SeaCam® has LED lights integrated into the housing. This self-lit camera is ideal for applications that require light within a limited space. Features include a sapphire port, dimming capabilities, and a titanium housing with a 4,000 m depth rating.
The LED Multi SeaCam includes a mounting bracket with titanium inserts. The Multi SeaCam offers similar capabilities without integrated LEDs.
Dimming
capabilities
Color
options
Standard
COnnector
NTSC & PAL analog outputs
Scratch-resistant sapphire port
up to 4 km depth rating
- Specifications

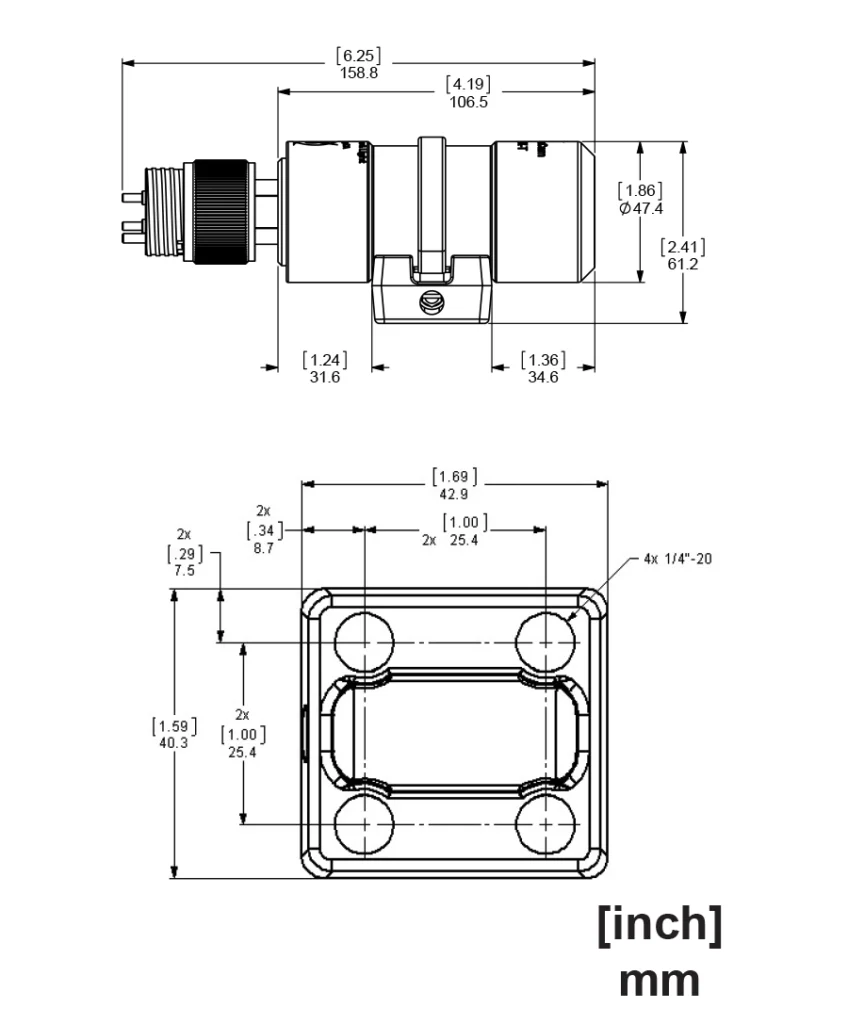

- Drawings
- Documents & Downloads
Downloads
LED Multi SeaCam®
1075 & 2075
Documents
Manuals & Specs
LED Multi SeaCam®
| Optical | MSC-1075 | MSC-2075 |
|---|---|---|
| Lens | 3.0 mm, f/2.0 | |
| Focus | Fixed Focus | |
| Depth of Field | 10 cm [4 in.] to infinity | |
| FOV in Air | 86° H x 63° V x 95° D | |
| FOV in Water | 64° H x 45.5° V x 74° D | |
| Video | MSC-1075 | MSC-2075 |
| Image Sensor | 1/3.2 inch CMOS image sensor | |
| Number of Pixels | 1280 H x 486 V (NTSC); 1211 H x 576 V (PAL) | |
| Resolution | 600 TV lines horizontal | |
| Scene Illumination | 0.59 Lux at f2.0 | 0.59 Lux at f2.0 |
| Signal to Noise | 50 dB | |
| Video Output | 1.0 volt peak-to-peak into 75 ohm | |
| Environmental | MSC-1075 | MSC-2075 |
| Depth Rating | 4,000 m | |
| Operational Temperature | -20° C to 40° C (-4° F to 104° F) | |
| Electrical | MSC-1075 | MSC-2075 |
| Input Voltage | 10 to 36 VDC | |
| Power | Camera: 0.93 W max LED: 0 to 3.1 W Total: 3.2 W max | |
| LED Color Ring | Green | White |
| Mechanical | MSC-1075 | MSC-2075 |
| Housing | Titanium | |
| Port | Sapphire | |
| Outer Diameter | 47.4 mm (1.86 in) | |
| Overall Length without connector | 106.5 mm (4.19 in) | |
| Weight in Air | 459 g (16 oz) | |
| Weight in Water | 112 g (4 oz) | |
