SmartSight® MV100
Transforming vision into insight.
Precision imaging for subsea and autonomous applications
Raw imaging data collection

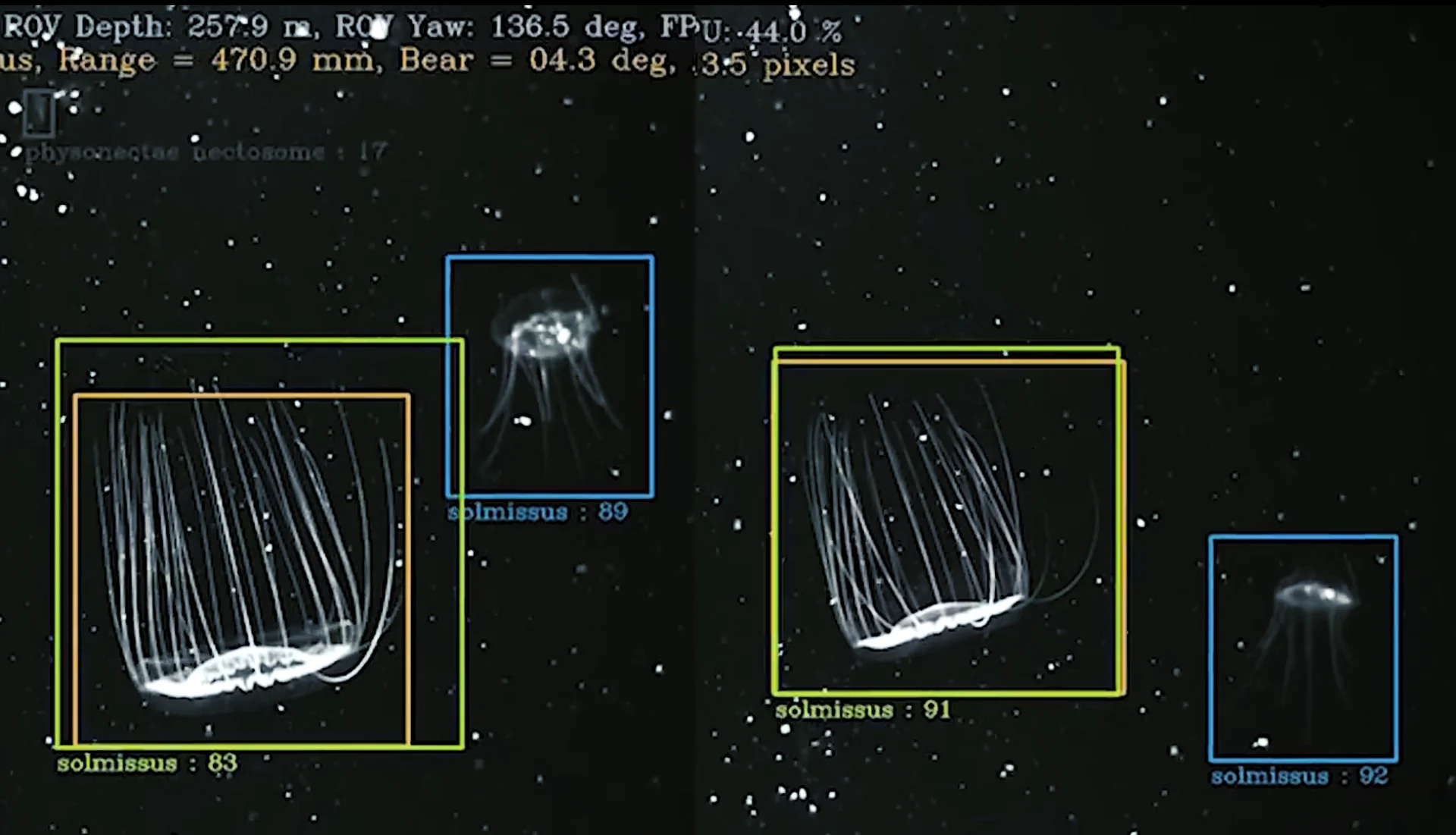

Object detection and classification
Autonomous navigation and obstacle avoidance

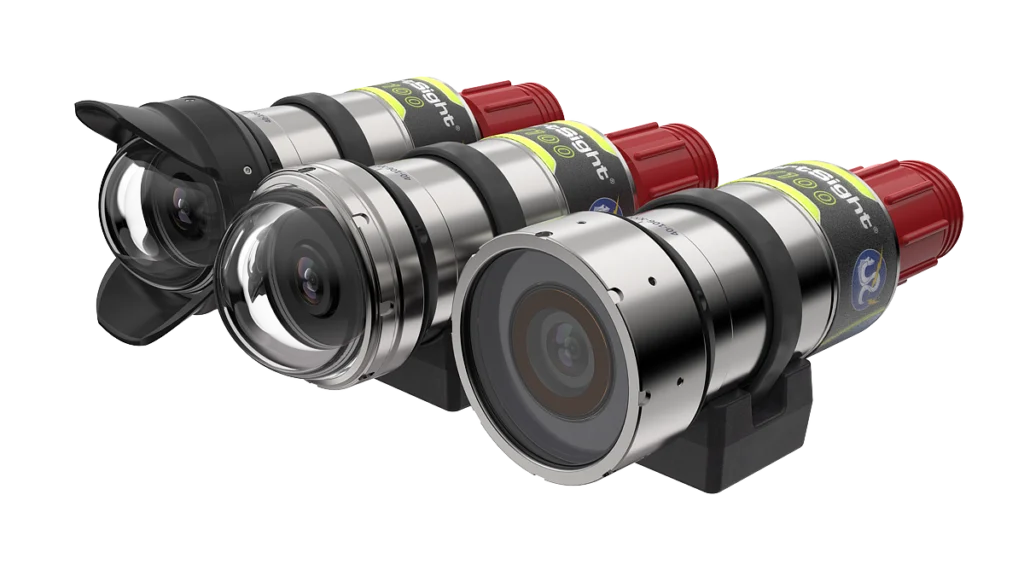

The SmartSight® MV100 camera combines best-in-class Sony Pregius global shutter sensors with GigE Vision modules, making it ideal for subsea machine vision. Its low power consumption and flexible integration make it a perfect fit for autonomous vehicles, while the compact design allows installation virtually anywhere. With multiple sensor and lens options, the SmartSight® MV100 can be tailored to suit nearly any imaging application.
SmartSight® MV100
PRODUCT OVERVIEW
PRODUCT APPLICATIONS
Stereo Imaging
Machine Learning
Photogrammetry
Mosaicking & Stitching
Neural Radience Fields (NeRfs)
Automated Inspection
Aquaculture Monitoring
Hyperspectral Imaging
Biodiversity Survey
Security & Surveillance
Visual Mapping
Pipeline & Cable Survey
AI Training & Data Collection
Automated Target Recognition (ATR)
2D Scientific Imaging
SmartSight® Mv100
What makes a machine vision camera different from other types of cameras?
Video Camera
Frame Rate
Fixed by the video standard, typically 25, 30, 50, or 60 fps
Resolution
Fixed by the video standard.
Shutter
Typically rolling, sometimes global.
Synchronization & Triggering
Not applicable
Image Data
Encoded, requires frame grabber to intercept
Machine Vision Camera
Frame Rate
Tunable to match the application needs, limited by frame rate and bandwidth
Resolution
Scalable to match application needs. Multiple sensor and resolution options
Shutter
Typically global, sometimes rolling
Synchronization & Triggering
Support generating and receiving trigger signals between other pieces of equipment
Image Data
Direct transfer of image data in standard formats
Still Frame Camera
Frame Rate
Single frame capture, slower than video
Resolution
Fixed by sensor
Shutter
Usually rolling shutter
Synchronization & Triggering
Manual
Image Data
Saved to internal memory, manual retrieval
SDK Available

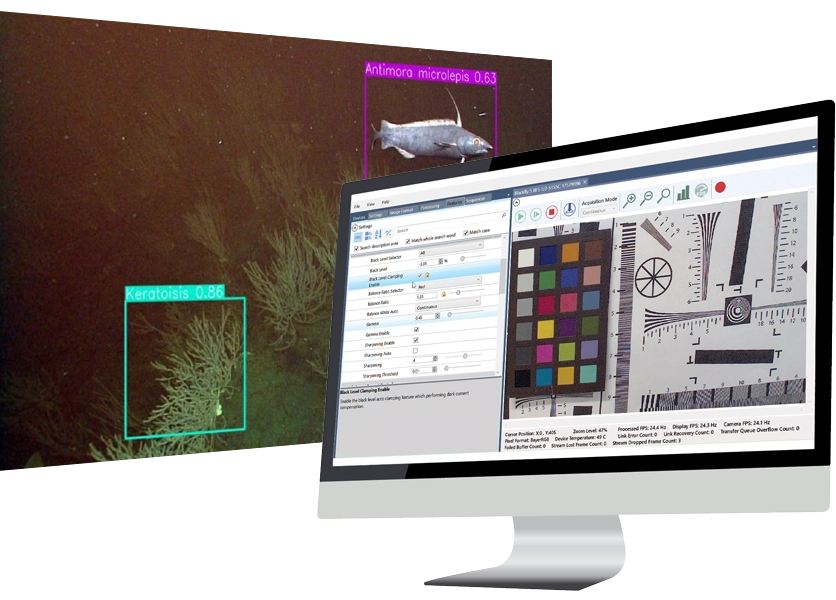

The SmartSight® MV100 utilizes a GUI (Graphical User Interface) application which serves as the primary interface for interacting with the SmartSight® MV100 system. To utilize this GUI, users will need to have the Spinnaker Full SDK downloaded.
Users will need an account with FLIR to access the download.
Global
shutter
Power over ethernet
triggering and synch-ronization
highly configurable
machine vision ready
available
sdk
- Specifications

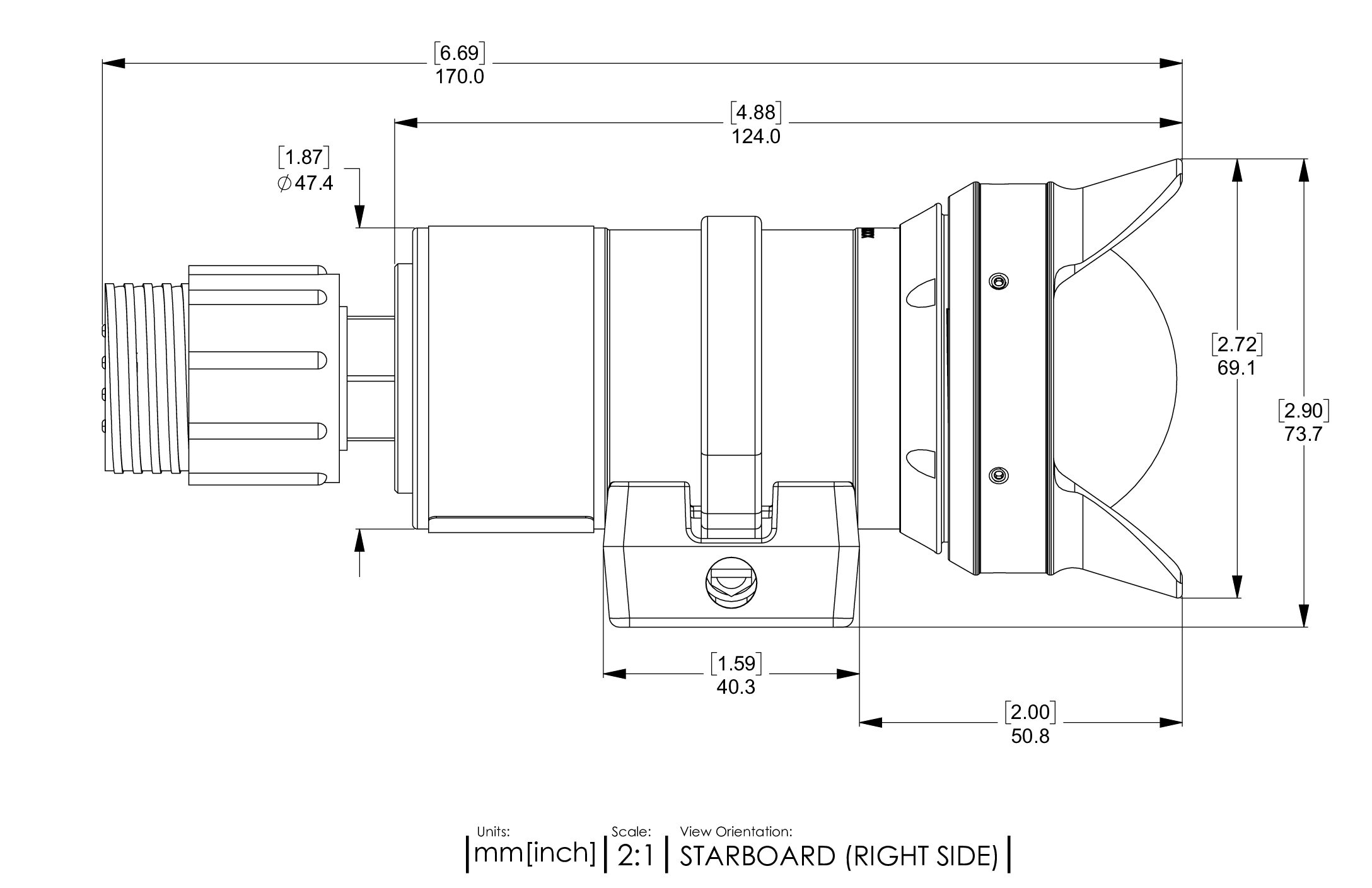

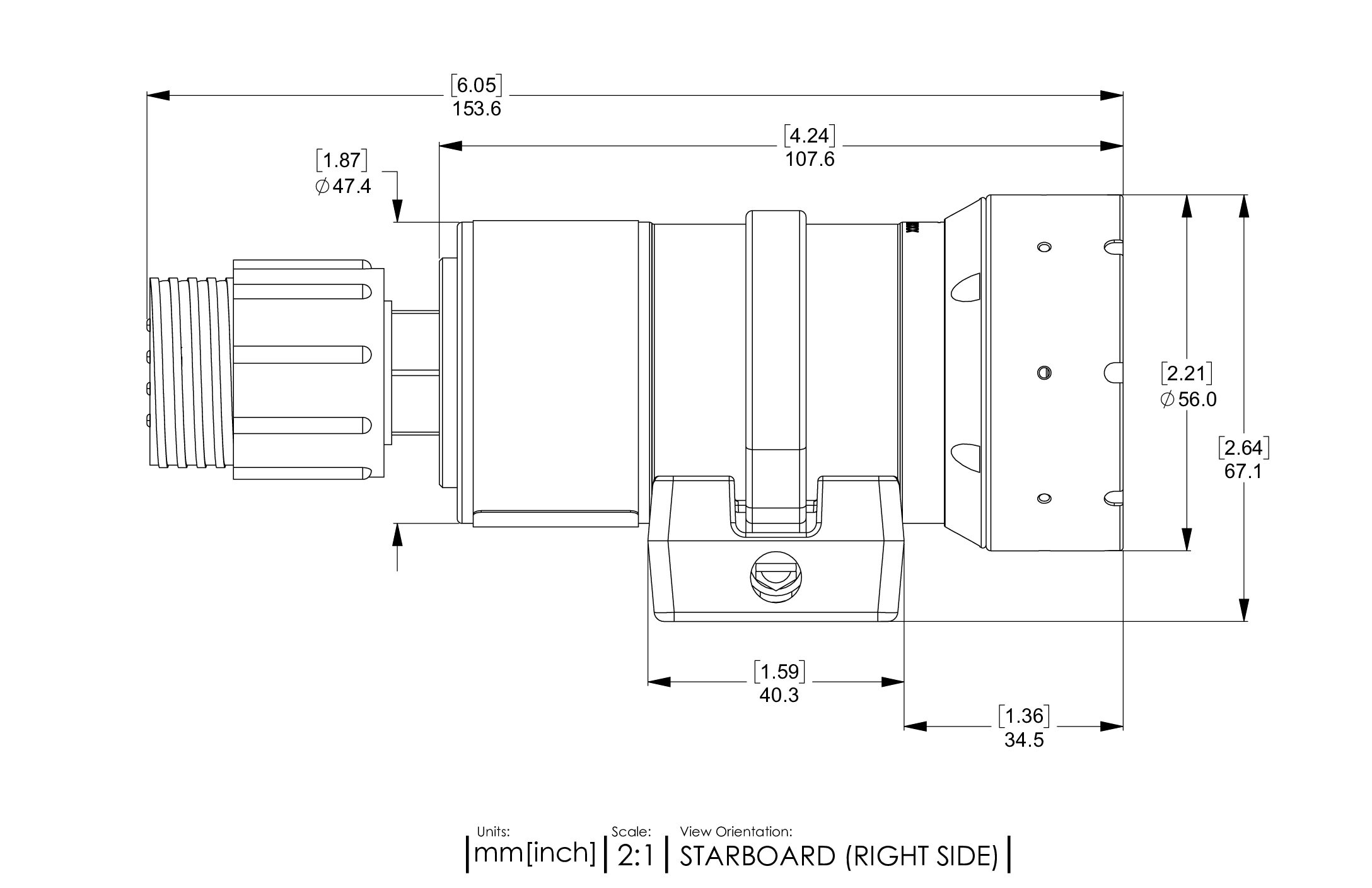

- Drawings
- Documents & Downloads
Downloads
SmartSight® MV100
S11255
S11254
S11253
S11252
Depending on your connection, some of the design files are larger and will take time to download.
Documents
Manuals & Specs
| SmartSight® MV100: | MV100-D (Dome Port) | MV100-F (Flat Port) |
|---|---|---|
| Lens | 2.7 mm F/2.9, 2.3 mm F/2.8 | 6 mm F/2.8, 2.7 mm F/2.9 |
| Image Sensor | 0.4 MP, 1.6 MP, 2.3 MP, 3.2 MP, Global Shutter | |
| Depth Rating | 6,000 m (11,000 m Option*) | 6,000 m |
| Operating Temp | -10 to 40 °C | |
| Storage Temp | -30 to 60 °C | |
| Housing | Titanium, Borosilicate Dome | Titanium, Borosilicate Flat Port |
| Weight in Air | 0.65 kg [1.4 lbs] | |
| Weight in Water | 0.37 kg [0.84 lbs] | 0.44 kg [1.0 lbs] |
| Power | 10–48 VDC or IEEE 802.3af PoE, 2.7 W max | |
| Interface | 10/100/1000 Base-T Ethernet, GigE Vision 1.2 compliant | |
| Input/Output | Isolated Input, capture trigger capable Isolated Output, frame synchronization | |
| Connector* | SUBCONN DBH13M *Contact Sales for more connector options | |
| *Contact Sales for applications requiring 11,000 m rating | ||
Field of View Specifications
| Sensor Option | 2.7 mm / Dome | 2.3 mm / Dome | 6 mm / Flat | 2.7 mm / Flat |
|---|---|---|---|---|
| 0.4 MP | 101° | 117° | 32° | 67° |
| 1.6 MP | 101° | 117° | 32° | 67° |
| 2.3 MP | 105° | 125° | 40° | 80° |
| 3.2 MP | 120° | – | 43° | 83° |

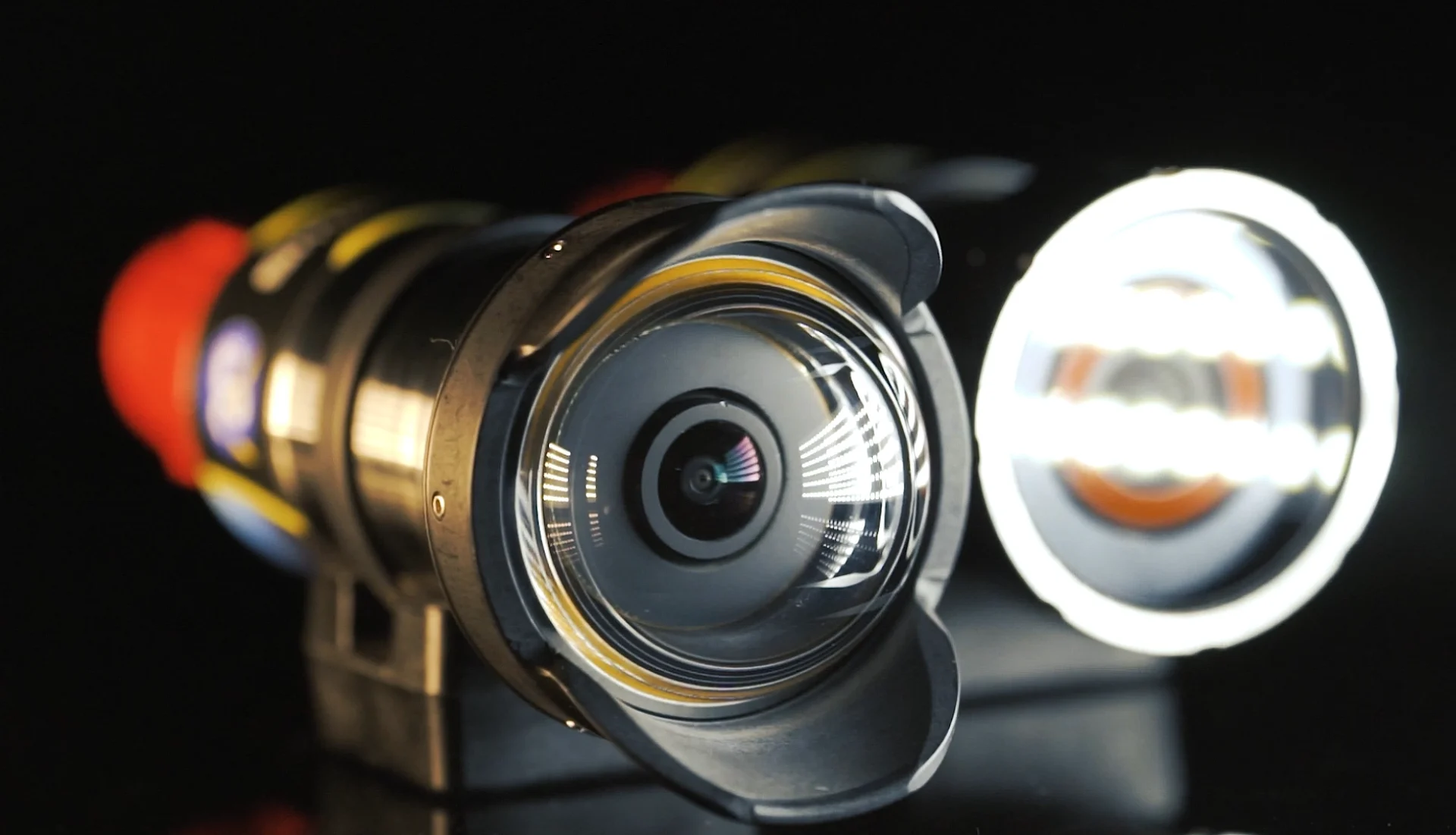

MV100-D (Dome Port)
Lens
2.7 mm F/2.9, 2.3 mm F/2.8
Image Sensor
0.4 MP, 1.6 MP, 2.3 MP, 3.2 MP, Global Shutter
Depth Rating
6,000 m
(11,000 m Option*)
Operating Temp
-10 to 40 °C
Storage Temp
-30 to 60 °C
Housing
Titanium, Borosilicate Dome
Weight in Air
0.65 kg [1.4 lbs]
Weight in Water
0.37 kg [0.84 lbs]
Power
10–48 VDC or IEEE 802.3af PoE, 2.7 W max
Interface
10/100/1000 Base-T Ethernet, GigE Vision 1.2 compliant
Input/Output
Isolated Input, capture trigger capable
Isolated Output, frame synchronization
Connector
SUBCONN DBH13M
Contact Sales for more options
MV100-F (Flat Port)
Lens
6 mm F/2.8, 2.7 mm F/2.9
Image Sensor
0.4 MP, 1.6 MP, 2.3 MP, 3.2 MP, Global Shutter
Depth Rating
6,000 m
Operating Temp
-10 to 40 °C
Storage Temp
-30 to 60 °C
Housing
Titanium, Borosilicate Flat Port
Weight in Air
0.65 kg [1.4 lbs]
Weight in Water
0.44 kg [1.0 lbs]
Power
10–48 VDC or IEEE 802.3af PoE, 2.7 W max
Interface
10/100/1000 Base-T Ethernet, GigE Vision 1.2 compliant
Input/Output
Isolated Input, capture trigger capable
Isolated Output, frame synchronization
Connector
SUBCONN DBH13M
Contact Sales for more options
Field of View Specifications
Sensor Option
2.7 mm / Dome
2.3 mm / Dome
6 mm / Flat
2.7 mm / Flat
0.4 MP
101°
117°
32°
67°
1.6 MP
101°
117°
32°
67°
2.3 MP
105°
125°
40°
80°
3.2 MP
120°
–
43°
83°
