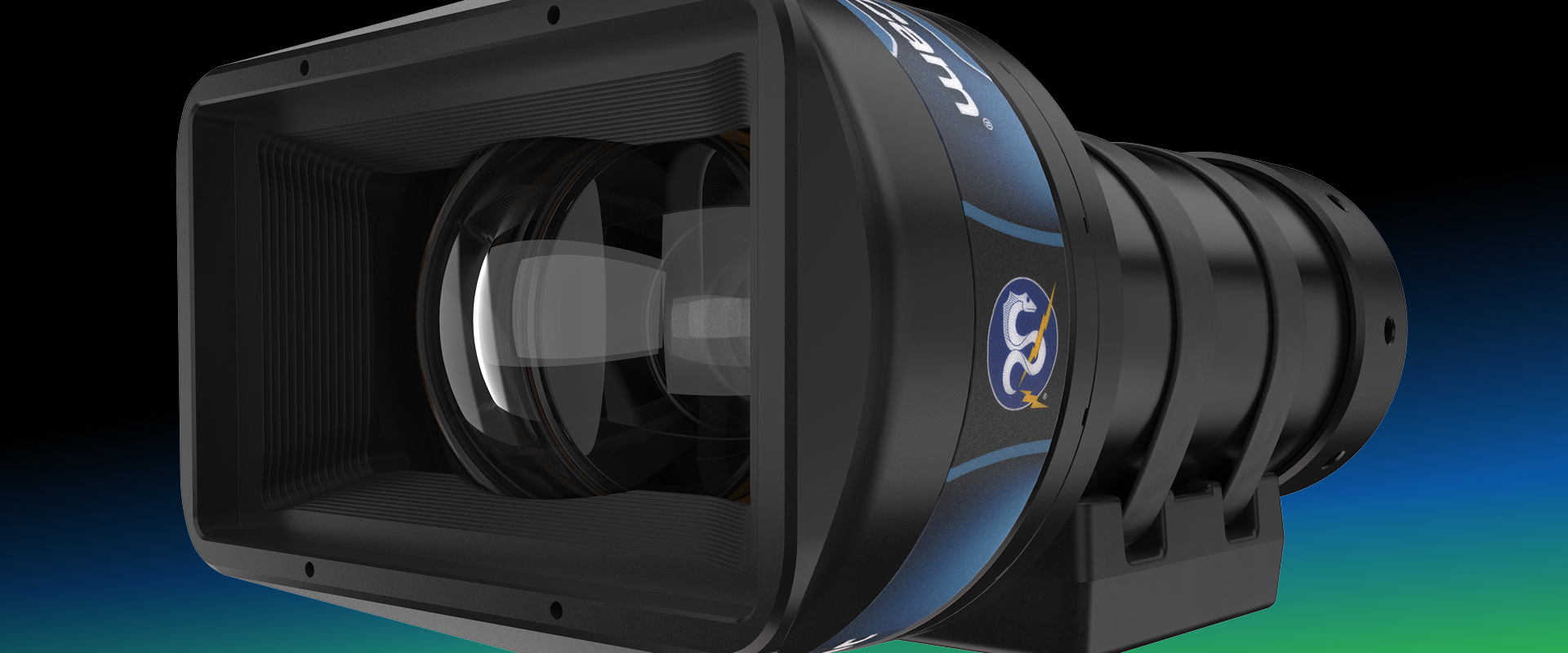

Vertex™ SeaCam®

Products

Cameras

Vertex SeaCam

Dynamic controls with up to 10x image zoom.

Superior imaging performance with proprietary corrector optics.

ROV/AUV Inspection Tasks

Scientific Research and Exploration

The compact Vertex^_™ SeaCam^_® includes full HD resolution with 10x optical zoom and low-distortion 80° HFOV at full-wide. A minimum faceplate illumination of 0.5 lux provides impressive low light capability.

This subsea camera works with RS-232 and RS-485 control interfaces through VISCA or SeaSense Protocol. Tristate control is available for zoom, focus, and auto focus features. The Vertex SeaCam is easy to integrate with fiber, coax, and FleXlink^_® output method options. Configuration options include aluminum housing with 6,000 m depth rating and titanium housing with 11,000 m depth rating. The Vertex SeaCam includes a mounting bracket with titanium inserts.

Request a Quote

Full HD Resolution

79° horizontal field of view

Custom corrector optics

10x optical
zoom

tristate zoom & focus

Up to 11 km depth rating

Specifications

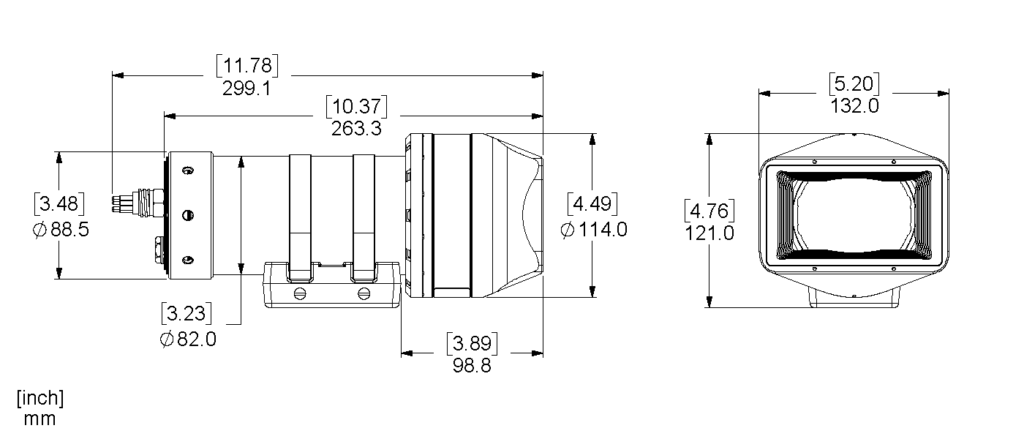

Drawings
Documents & Downloads

Downloads

Vertex^_™ SeaCam^_®

Vertex^_™ SeaCam^_® Dome_x_b

Vertex^_™ SeaCam^_® Dome_STEP

Vertex^_™ SeaCam^_® Dome_SLDPRT

Vertex^_™ SeaCam^_® Dome_IGS

Documents

Manuals & Specs

Vertex^_™ SeaCam^_® SpecSheet

Vertex^_™ SeaCam^_® – VSC-1080
Optical
Lens	3.2 mm to 32 mm F/1.8 to F/3.4
Optical Zoom	10x
Focus	Wide: 10 mm Tele: 250 mm
FOV in Water	Wide: 86° D x 79° H x 49° V Tele: TBD
Video
Image Sensor	1/3” CMOS Progressive Scan
Resolution	1920×1080
Measured Resolution	850 TVL at Full Wide
Faceplate Illumination	0.5 lx
Signal to Noise	> 50dB
Video Output	HD-SDI 1.485 Gb/s: 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.94, 720p/253G-SDI 2.97 Gb/s: 1080p/60, 1080p/59.94, 1080p/50CVBS: NTSC, PAL
Environmental
Depth Rating	Aluminum: 6,000 m Titanium: 11,000 m
Operational Temperature	-5 °C to 40 °C (23 °F to 104 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Voltage	10~36 VDC
Power	Fiber Optic: 10W max FleXlink^_® and Coax: 7W max
Serial Protocol	SeaSense™ Serial Protocol, VISCA
Control Interface	RS-232, RS-485, Tristate (zoom, focus, auto focus)
Mechanical
Housing	6000 Series Aluminum 6Al-4V Titanium
Port	Optical glass dome
Outer Diameter	120.7 mm (4.75 in.)
Length without connector	279.1 mm (10.99 in.)
Outer Diameter	120.7 mm (4.75 in.)
Weight in Air	Aluminum: 3.84 kg (8.47 lbs)
Weight in Water	Aluminum: 1.81 kg (3.99 lbs)
Connectors
Fiber	Electric: SEACON MCBH6 Fiber Optic: SEACON MINF-1FO
Coax	SubConn HF75DXBH6M
FleXlink^_®	SubConn DBH8MP
Please contact sales for more options
