Relief Valves

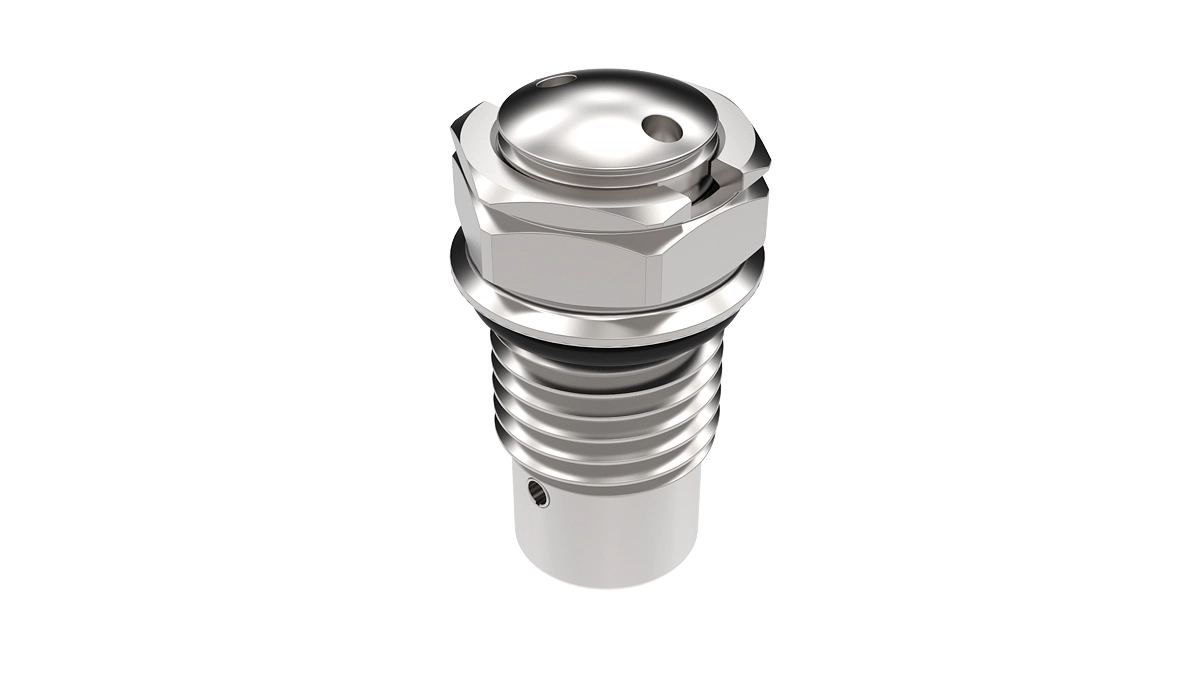

SeaVEnt® Single Seal SAE
PRV models to meet your subsea vehicle needs.
Subsea vehicles
Our Single Seal SAE (SSS) is available in 316 stainless steel with a cracking pressure range set from 5-15 or 15-25 psi. There is no vacuum fill option for this configuration.
SeaVent® pressure relief valves meet critical subsea specifications for a variety of applications. Models are available with adjustable cracking pressure, a selection of materials, and an 11,000 m depth rating. A 6,000 m depth rating is standard.
Adjustable cracking pressure
Material options
6,000 M standard depth rating
- Specifications
- Drawings
- Documents & Downloads
Downloads
SeaVent® Single Seal SAE
Documents
| Environmental | Single Seal SAE (SSS) | |
|---|---|---|
| Depth | Stainless Steel: 6,000 m | |
| Temperature | 0° C to 40° C (32° F to 104° F) | |
| Default Cracking Pressure | 25 psi +/- 20% | |
| Cracking Pressure Range | 15 to 25 psi (Optional 5 to 15 psi) | |
| Material | Stainless Steel 316 (passivated) | |
| Diameter | 14.3 mm (0.56 in) | |
| Length | 25 mm (0.98 in) | |
| Weight in Air | 12.90 g (0.46 oz) | |
| Threads | 7/16 – 20 with #4 J1926 Port | |
