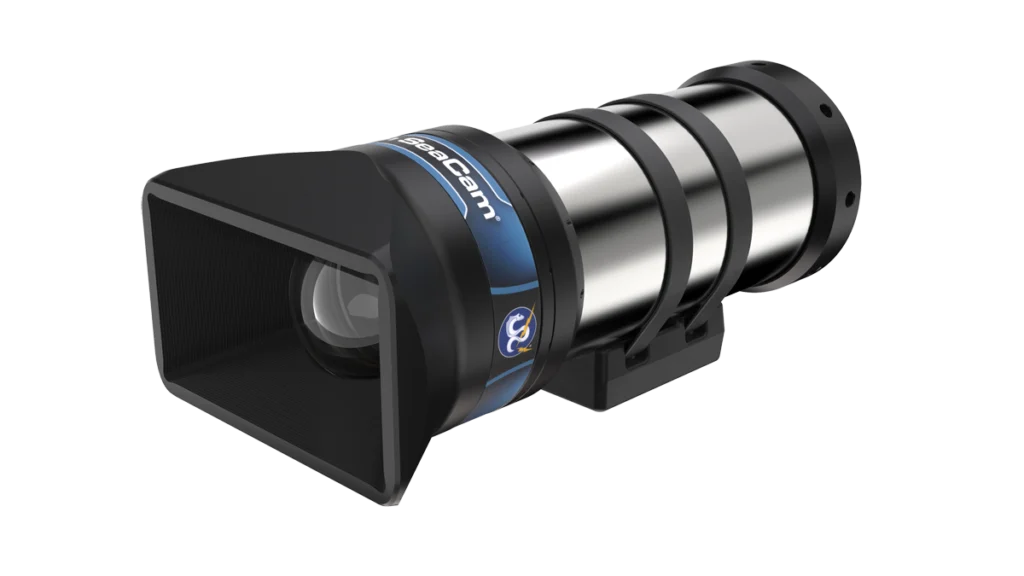

Optim SeaCam®
Premium 4K Ultra-High Definition Video
A unique, rugged tool for scientists, subsea explorers, and filmmakers.
ROV/AUV Inspection Tasks
Scientific Research and Exploration
The Optim SeaCam® holds the distinction of being the first 4K camera to dive to the deepest points of the oceans: Challenger Deep in the Mariana Trench, more than 10km down. Ideal for real-time viewing in 4K and optimal for discovery, documentation, and storytelling, the Optim SeaCam features an extended zoom range and a 350mm minimum object distance at full telephoto that makes for stunning close-up images and brings out the smallest details. Familiar VISCA controls make the Optim a logical upgrade path from legacy HD systems, while being sized to fit almost any platform from medium inspection class vehicles to large manned submersibles.
Optim SeaCam®
PRODUCT OVERVIEW
15.5x optical
zoom
4k Ultra HD
Low latency
6G-SDI
Fiber or Coax
350 mm minimum object distance
Up to 11 km depth rating
- Specifications

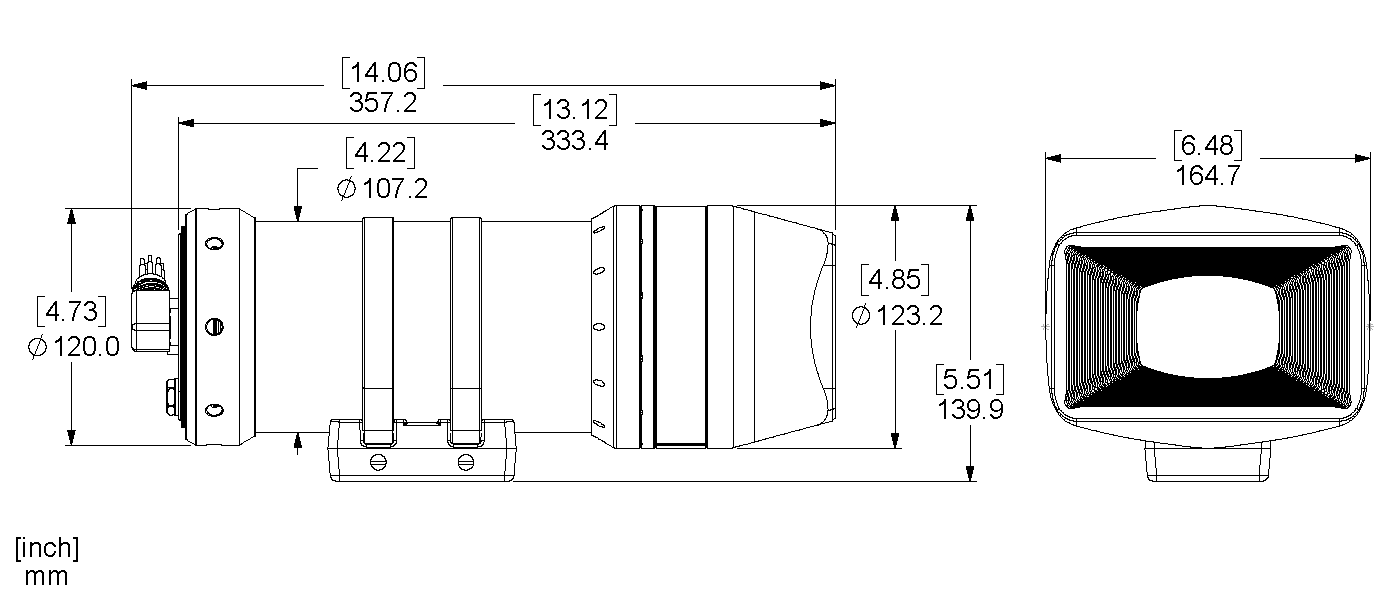

- Drawings
- Documents & Downloads
Downloads
OSC-2080-FO & OSC-2080-CX
OSC-2080-IP
Documents
Manuals & Specs
Optim SeaCam®
IP Optim SeaCam®
OSC-2080-FO
OSC-2080-CX
OSC-2080-IP
OSC-2080-FO & OSC-2080-CX
| Optim SeaCam® OSC-2080-FO & OSC-2080-CX | ||
|---|---|---|
| Optical | ||
| Lens | 5.7 mm to 88.4 mm F/2.0 to F/3.8 | |
| Optical Zoom | 15.5x | |
| Focus | Wide: 50 mm to Infinity Tele: 350 mm to Infinity | |
| FOV in Water | Wide: 86° D x 78° H x 48° V | |
| Video | ||
| Image Sensor | 1/2.5″ CMOS Progressive Scan | |
| Faceplate Illumination | 0.35 Lux (50 IRE) | |
| Scene Illumination | 1.2 Lux (50 IRE) | |
| Maximum Resolution | 3840 x 2160 | |
| HD Video Formats | HD-SDI 1.485Gb/s: 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/29.97, 720p/25 3G-SDI 2.97Gb/s:1080p/59.94, 1080p/50 | |
| 4K UHD Video Formats | 6G-SDI: 2160p/29.97, 2160p/25 | |
| Environmental | ||
| Depth Rating | 6,000 m (11,000 m option) | |
| Operational Temperature | -5°C to 40°C [23°F to 104°F] | |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] | |
| Electrical | ||
| Input Voltage | 10V to 36V | |
| Power | Coax: 10W max, Fiber: 12W max | |
| Control Interface | RS-232, RS-485, Tristate (zoom, focus, auto focus) | |
| Serial Protocol | SeaSense, VISCA | |
| Mechanical | ||
| Housing | 6Al-4V Titanium | |
| Port | Optical glass dome | |
| Outer Diameter | 120.7 mm (4.75 in.) | |
| Length w/out Connector | 279.1 mm (10.99 in.) | |
| Weight in Air | 6.85 kg [15.1 lbs.] | |
| Weight in Water | 2.73 kg [6.02 lbs.] | |
| Connectors | ||
| Fiber | 4000 m / 5800 PSI (7000 m option) | |
| Coax | 7250 PSI | |
| FleXlink® | −8 °C to +27 °C | |
| *Contact Sales for more connector options | ||
OSC-2080-IP
| Optim SeaCam® OSC-2080-IP | ||
|---|---|---|
| Optical | ||
| Lens | 5.7 mm to 88.4 mm F/2.0 to F/3.8 | |
| Optical Zoom | 15.5x | |
| Lossless Digital Zoom | 1.5x, 24x Combined | |
| Digital Zoom | 12x, 240x Combined | |
| Focus | Wide: 50 mm ~ Infinity Tele: 350 mm ~ Infinity | |
| FOV in Water | Wide: 86° D x 78° H x 48° V | |
| Video | ||
| Image Sensor | 1/2.5″ CMOS Progressive Scan | |
| Faceplate Illumination | 0.35 Lux (50 IRE) | |
| Scene Illumination | 1.2 Lux (50 IRE) | |
| Maximum Resolution | 3840 x 2160 | |
| Interface | ||
| Supported Protocols | RTP, RTSP, RTMP, MPEG-2TS | |
| Video Compression | HEVC (h.265), h.264, MJPG | |
| Bit Rate | 5 Mbps (20 Mbps Max) | |
| Benchmark Latency | 594msec Streamed with VLC, 50ms buffer | |
| Optimized Latency | ~310ms, Hardware Decoder | |
| Max Frame Rate | 30 FPS | |
| Integrated Recording | 4K UHD MPEG Video | |
| Onboard Memory | 256GB (1 TB Option) | |
| Configuration Settings | Browser (Chrome, Firefox, IE), ONVIF Profile S | |
| Environmental | ||
| Depth Rating | 6,000 m (11,000 m option) | |
| Operational Temperature | -5°C to 40°C [23°F to 104°F] | |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] | |
| Electrical | ||
| Voltage | 10~36 VDC | |
| Power | 12W max | |
| Serial Protocol | VISCA (over TCP/IP) | |
| Mechanical | ||
| Housing | 6Al-4V Titanium | |
| Port | Optical glass dome | |
| Outer Diameter | 107.2 mm [4.22 in] | |
| Overall Length (Without Connector) | 333.4 mm [13.12 in] | |
| Weight in Air | 6.85 kg [15.1 lbs.] | |
| Weight in Water | 2.73 kg [6.02 lbs.] | |
| Connector | ||
| Ethernet | SubConn DBH13M | |
| *Contact Sales for more connector options | ||
OSC-2080-FO & OSC-2080-CX
OPTICAL
Lens
5.7 mm to 88.4 mm F/2.0 to F/3.8
Optical Zoom
15.5x
Focus
Wide: 50 mm to Infinity Tele: 350 mm to Infinity
FOV in Water
Wide: 86° D x 78° H x 48° V
VIDEO
Image Sensor
1/2.5″ CMOS Progressive Scan
Faceplate Illumination
0.35 Lux (50 IRE)
Scene Illumination
1.2 Lux (50 IRE)
Maximum Resolution
3840 x 2160
HD Video Formats
HD-SDI 1.485Gb/s: 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/29.97, 720p/25
3G-SDI 2.97Gb/s:1080p/59.94, 1080p/50
4K UHD Video Formats
6G-SDI: 2160p/29.97, 2160p/25
ENVIRONMENTAL
Depth Rating
6,000 m (11,000 m option)
Operational Temperature
-5°C to 40°C [23°F to 104°F]
Storage Temperature
-20°C to 60°C [-4°F to 140°F]
ELECTRICAL
Input Voltage
10V to 36V
Power
Coax: 10W max, Fiber: 12W max
Control Interface
RS-232, RS-485, Tristate (zoom, focus, auto focus)
Serial Protocol
SeaSense, VISCA
MECHANICAL
Housing
6Al-4V Titanium
Port
Optical glass dome
Outer Diameter
120.7 mm
(4.75 in.)
Length w/out Connector
279.1 mm
(10.99 in.)
Weight in Air
6.85 kg [15.1 lbs.]
Weight in Water
2.73 kg [6.02 lbs.]
CONNECTORS
Fiber
4000 m / 5800 PSI (7000 m option)
Coax
7250 PSI
FleXlink®
−8 °C to +27 °C
*Contact Sales for more connector options
OSC-2080-IP
OPTICAL
Lens
5.7 mm to 88.4 mm F/2.0 to F/3.8
Optical Zoom
15.5x
Lossless Digital Zoom
1.5x, 24x Combined
Digital Zoom
12x, 240x Combined
Focus
Wide: 50 mm ~ Infinity
Tele: 350 mm ~ Infinity
FOV in Water
Wide: 86° D x 78° H x 48° V
VIDEO
Image Sensor
1/2.5″ CMOS Progressive Scan
Faceplate Illumination
0.35 Lux (50 IRE)
Scene Illumination
1.2 Lux (50 IRE)
Maximum Resolution
3840 x 2160
INTERFACE
Supported Protocols
RTP, RTSP, RTMP, MPEG-2TS
Video Compression
HEVC (h.265), h.264, MJPG
Bit Rate
5 Mbps (20 Mbps Max)
Benchmark Latency
594msec
Streamed with VLC, 50ms buffer
Optimized Latency
~310ms, Hardware Decoder
Max Frame Rate
30 FPS
Integrated Recording
4K UHD MPEG Video
Onboard Memory
256GB (1 TB Option)
Configuration Settings
Browser (Chrome, Firefox, IE), ONVIF Profile S
ENVIRONMENTAL
Depth Rating
6,000 m (11,000 m option)
Operational Temperature
-5°C to 40°C [23°F to 104°F]
Storage Temperature
-20°C to 60°C [-4°F to 140°F]
ELECTRICAL
Voltage
10~36 VDC
Power
12W max
Serial Protocol
VISCA (over TCP/IP)
MECHANICAL
Housing
6Al-4V Titanium
Port
Optical glass dome
Outer Diameter
107.2 mm [4.22 in]
Length w/out Connector
333.4 mm [13.12 in]
Weight in Air
6.85 kg [15.1 lbs.]
Weight in Water
2.73 kg [6.02 lbs.]
CONNECTOR
Ethernet
SubConn DBH13M
*Contact Sales for more connector options
