ACCESSORIES FOR CAMERAS AND LIGHTS

We offer a wide range of accessories for our cameras and lights.

Brackets are available for our lights and cameras to securely mount to your ROV, diving equipment, and other applications.

Empty housings are available to incorporate your own design with a 2,000 m or 6,000 m depth rating. Housings include a SEACON BH4MP connector and SSC-BRKT mounting bracket.

For more information, please contact Sales.

BRACKETS

Image Line Drawing Bracket Model Description
 MRD Bracket Line Drawing MRD Metal rail dovetail used with the quick release mount.
QRM Quick Release Mount used with the metal rail dovetail.
  UBS Universal mounting bracket assembly, small, includes UBSC, UBSL, and UBSH. Used with SeaLaser 100, Mini SeaLite, SeaLite
UBSC UBSC mounting collar, small. Used with Mini SeaLite, SeaLaser 100.
UBSL UBS mounting L-bracket, small or large, used in combination with the UBSC bracket.
LSL-SDL-M and LSL-SDL-I

Metric: Saddle mounting bracket for LED SeaLite and Multiray LED SeaLite with Titanium 6 mm Metric threads.

Imperial: Saddle mounting bracket for LED SeaLite and Multiray LED SeaLite with Titanium ¼-20” threads.

MSC-BRKT-M and MSC-BRKT-I

Metric: Multi SeaCam bracket with Titanium 6 mm Metric threads.

Imperial: Multi SeaCam bracket with Titanium ¼-20” threads.

SSC-BRKT Mounting bracket for HD Zoom SeaCam, SSC housings, and Super SeaCam 5000.
  ML-DMC Legacy mounting bracket with stainless steel inserts used with all Multi SeaLite family of Halogen lights, LED Multi SeaLite, LED Multi SeaLite Matrix, and older version of SeaLite Sphere. Replacement is 2-piece mounting bracket with Titanium inserts.
  ML-DMC-TI-M and ML-DMC-TI-I

Metric: 2-piece mounting bracket with Titanium 6 mm thread size inserts.

Imperial: 2-piece mounting bracket with Titanium 1/4-20″ thread size inserts. Used with all Multi SeaLite family of Halogen lights, LED Multi SeaLite Matrix, and SeaLite Sphere 000 Series.

  SLS-DMC-TI-M and SLS-DMC-TI-I

Metric: 2-piece mounting bracket with Titanium 6 mm thread size inserts.

Imperial: Titanium 1/4-20″ thread size inserts. Used with SeaLite Sphere 100 and 150 series lights.

  DUAL-NANO-BRKT Fits a Nano SeaLite and Nano SeaCam, or a pair of either the Nano SeaLite or Nano SeaCam.

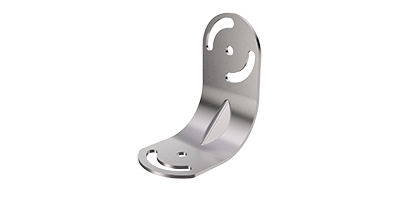

  LBRKT Mounting bracket used on the LED SeaLite, Multi SeaCam, and SeaLite Lumos. Adapts to hole pattern of the SLS bracket series.
  YMB-Old Yoke mounting bracket used with Multi SeaLite series lights (except wet/dry model and Multi SeaLite 3).
  YMB-New Yoke mounting bracket used with the new 2-piece mounting bracket (ML-DMC-Ti/M, LSL-DMC-Ti-I/M, and SLS-DMC-Ti-I/M).
YMB-Small Small yoke mounting bracket used in combination with the UBSC bracket.
  UHMB Universal helmet mounting bracket used with most DSPL diver cameras and lights.
  KM3755-BRKT KB-37 & 77 universal helmet mounting bracket used with most DSPL diver cameras and lights.
  KM17-BRKT L-shaped helmet mounting bracket used with Nano SeaCam and remote SeaLite 6.

HOUSING

Image Line Drawing Housing Model Description
 SSC-HOUS-AL-FLATPRT 9 inch flat port aluminum housing with SEACON BH4MP connector
 SSC-HOUS-TI-FLATPRT 9 inch flat port titanium housing with SEACON BH4MP connector
SSC-BRKT Mounting bracket for Super SeaCam housings

Downloads

Housing

SSCHOUS_ALTI_FLATPRT_IGS

SSCHOUS_ALTI_FLATPRT_SLDPRT

SSCHOUS_ALTI_FLATPRT_STEP

SSCHOUS_ALTI_FLATPRT_x_b

Depending on your connection, some of the design files are larger and will take time to download.
